Removal

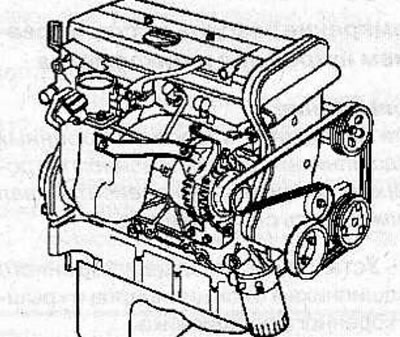

Remove the engine from the car (see the relevant chapter).
Install the engine on the KM-4120 stand using KM-412-8-1-2 adapters.
Remove the oil pump (see the relevant chapter).
Remove the balance shaft assembly (see the relevant chapter).

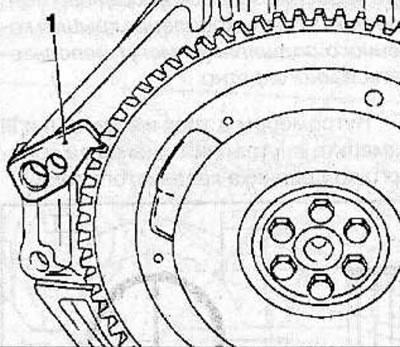

Using the special tool KM-652 (1), block the flywheel from turning and unscrew the flywheel mounting bolts.

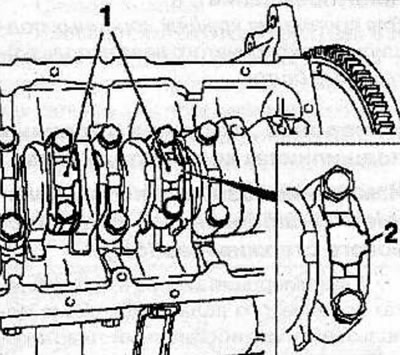

Place marks on the connecting rod caps (1) so that the marks (2) are located on the flywheel side.
Remove the bolts and the connecting rod caps.

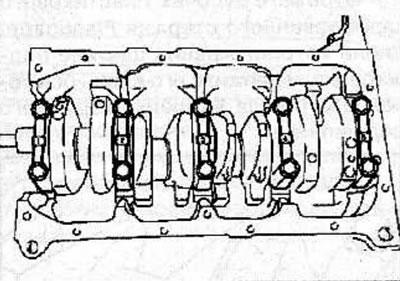

Mark the location of the crankshaft main bearing caps, unscrew the bolts and remove the caps from the cylinder block.
Remove the crankshaft from the cylinder block.
Clean all removed parts thoroughly.
Examination
Check the crankshaft main and connecting rod journals for scratches, wear or cracks. Check the crankshaft oil holes for clogging
Lubricate the main bearing shells with engine oil and install them into the cylinder block.
Install the crankshaft onto the main bearing shells in the cylinder block.

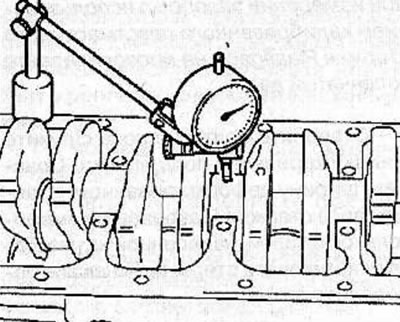

Install the measuring tip of the MKM-571-V pointer-type indicator onto the crankshaft journal. Rotate the crankshaft and measure its runout using a pointer-type indicator.
Crankshaft runout: no more than 0.03 mm.
Warning: Use new bolts to secure the crankshaft main bearing caps.
Measuring clearances in crankshaft main bearings
Measuring gaps using a calibrated plastic rod Plastigage
To measure the crankshaft bearing clearance, use a calibrated plastic Plastigage rod.
Loosen the bolts and remove the cover and main bearing shell. Clean the bearing, cover and crankshaft journal.

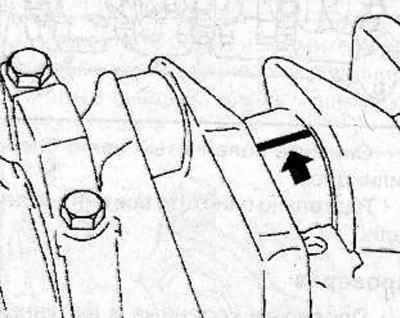

Cut a piece of Plastigage plastic gauge rod the same length as the bearing width and place it along the crankshaft axis on the main bearing journal.
Install the main bearing cap with the liner and secure with bolts, tightening them as follows:
- 1st pass: tighten the bolts to 50 Nm;
- 2nd pass: tighten the bolts to an angle of 45°;
- 3rd pass: tighten the bolts by an additional 15°.
Note: When checking main bearing clearances, the main bearing cap bolts can be reused.
Warning: When measuring clearances using a Plastigage gauge, do not rotate the crankshaft.

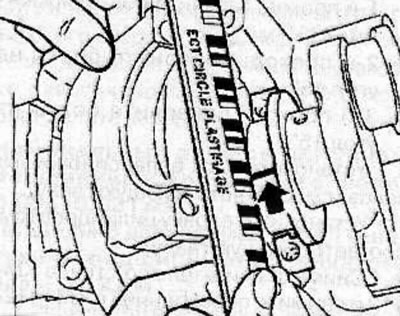

Loosen the bolts and remove the main bearing cap again. Compare the width of the deformed Plastigage plastic rod with the measuring scale printed on the plastic rod packaging. Use the scale to determine the gap.
Nominal clearance in the crankshaft main bearing: 0.015-0.040 mm.
Install the main bearing cap with the liner and secure it with bolts, tightening them as follows:
- 1st pass: tighten the bolts to 50 Nm;
- 2nd pass: tighten the bolts to an angle of 45°;
- 3rd pass: tighten the bolts by an additional 15°.
Measuring clearances using a bore gauge and micrometer
Note: To measure main bearing clearances using a bore gauge and micrometer, the crankshaft must be removed from the engine.
Install the main bearing shells into the cylinder block and main bearing cap.
Install the main bearing cap with the liner and secure with bolts, tightening them as follows:
- 1st pass: tighten the bolts to 50 Nm;
- 2nd pass: tighten the bolts to an angle of 45°;
- 3rd pass: tighten the bolts by an additional 15°.
Note: When checking main bearing clearances, the main bearing cap bolts can be reused.

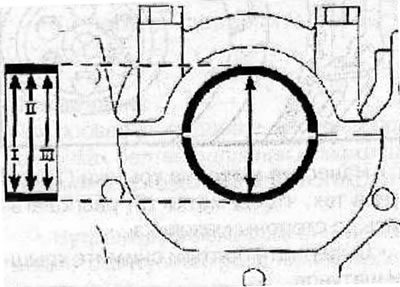

Using a bore gauge, measure the inner diameter of the crankshaft main bearing in three places I, II and III.
Calculate the average diameter of the main bearing bore using the formula: Average diameter of the main bearing bore = (I + II + III): 3
Example:
- I = 54.972 mm
- II = 54.981 mm
- III = 54.984 mm
Average bore diameter of main bearing = (54.972 + 54.981 + 54.984): 3 = 54.979 mm

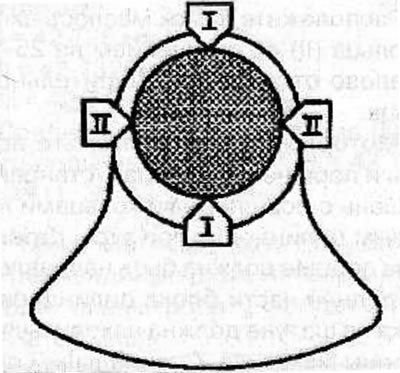

Using a micrometer, measure the diameter of the crankshaft main journal in two diametrically perpendicular planes.
Calculate the average diameter of the crankshaft main journal using the formula:
Average diameter of crankshaft main journal = (I + II): 2
Example:
- I= 54.962 mm
- II = 54.964 mm
Average diameter of crankshaft main journal = (54.962 + 54.964): 2 = 54.963 mm
Calculate the clearance in the crankshaft main bearing by subtracting the average diameter of the crankshaft main journal from the average diameter of the main bearing bore.
Nominal clearance in the crankshaft main bearing: 0.015-0.043 mm
Installation

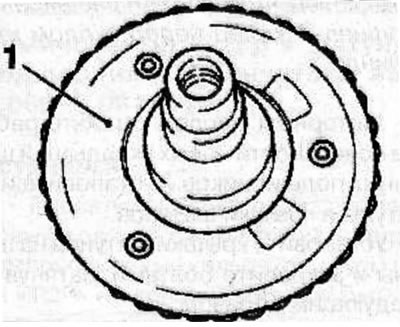

When replacing the crankshaft, install the crankshaft position sensor rotor (1) on the crankshaft and secure it with new bolts, tightening them to a torque of 13 Nm.
[Material copied from this website www.opelbook.ru]

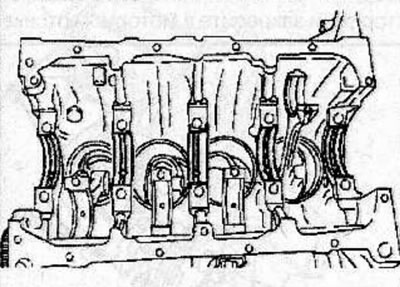

Lubricate the main bearing shells with engine oil and install them into the cylinder block and main bearing caps.
Before installing the crankshaft, apply a thin layer of clean engine oil to all sliding surfaces. Install the crankshaft onto the main bearing shells in the cylinder block.
Install the crankshaft main bearing caps in accordance with the markings and secure with bolts, tightening them as follows:
- 1st pass: tighten the bolts to 50 Nm;
- 2nd pass: tighten the bolts to an angle of 45°;
- 3rd pass: tighten the bolts by an additional 15°.
Turn the crankshaft and check that it rotates easily and smoothly.

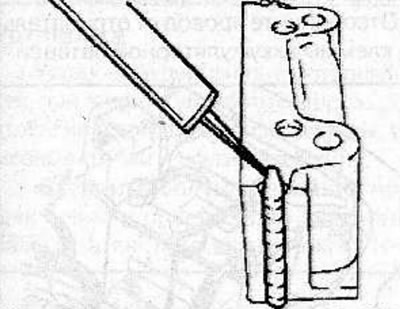

After installing the rear crankshaft main bearing cap, pressurize the side channels of the cap with sealant until the sealant begins to come out of the side joints of the cap.

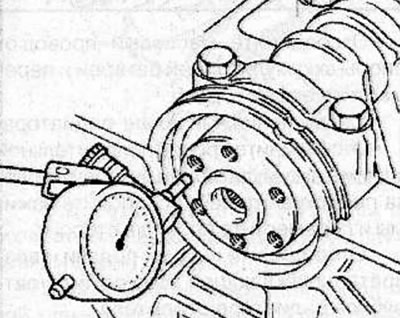

Check the crankshaft axial clearance. Install the measuring tip of the MKM-571-V pointer-type indicator on the rear end of the crankshaft. Move the crankshaft along the axis until it stops and set the dial indicator scale to zero. Move the crankshaft along the axis in the other direction until it stops and read the axial play values on the indicator scale.
Nominal axial clearance of the crankshaft: 0.010-0.020 mm
If the axial clearance exceeds the permissible values, replace the crankshaft thrust washers.
Install the connecting rod caps onto the connecting rods and secure with bolts, tightening them as follows:
- 1st pass: tighten the bolts to 35 Nm;
- 2nd pass: tighten the bolts to an angle of 45°;
- 3rd pass: tighten the bolts by an additional 15°.
Install the rear crankshaft oil seal (see the relevant chapter).
Install the balance shaft block (see the relevant chapter).
Install the oil pump (see the relevant chapter).
Remove the engine from the KM-412 stand and remove the adapters from the KM-412-8-1-2 from the engine.
Install all previously removed components onto the engine.
Install the engine (see the relevant chapter).
