Accelerator pedal (Opel Frontera B)

Removal

Disconnect the cable from the accelerator pedal.

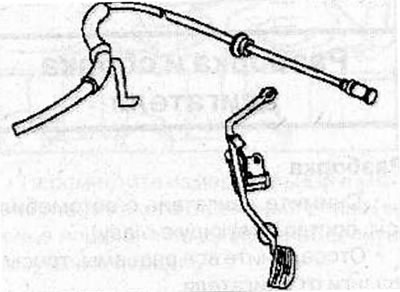

Remove the bolts and accelerator pedal from the engine compartment bulkhead.

Installation

Install the accelerator pedal on the engine compartment bulkhead. Apply a locking agent to the bolt threads, then screw in the accelerator pedal mounting bolts and tighten them to a torque of 10 N·m.

Connect the cable to the accelerator pedal.
