Camshaft pulley
Removing
1. Remove the toothed belt.

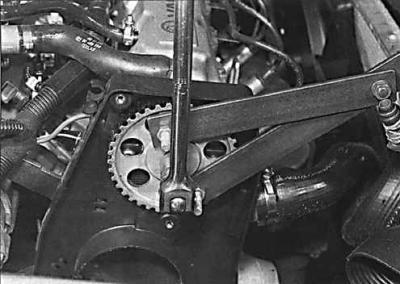

2. Secure the camshaft against rotation using one of the following methods. Use a special tool made from two steel strips with bolts at the ends that fit into the camshaft pulley holes.

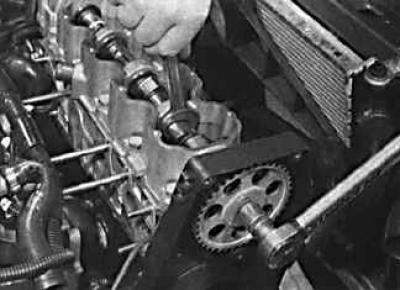

3. Remove the cylinder head cover and secure the camshaft from turning with a wrench in the grooves of the camshaft.
4. Unscrew the bolt securing the camshaft pulley and remove the pulley.
Installation
1. Check the camshaft oil seal for wear and damage and replace if necessary.
2. Install the camshaft pulley. When doing this, align the hole on the pulley (2) with camshaft locating pin (1).
3. Tighten the crankshaft pulley bolt to the specified torque. At the same time, keep the camshaft from turning.
4. Install the toothed belt and cylinder head cover.
Crankshaft pulley
Removing
1. Remove the toothed belt.
2. Remove the toothed pulley from the crankshaft.
Installation

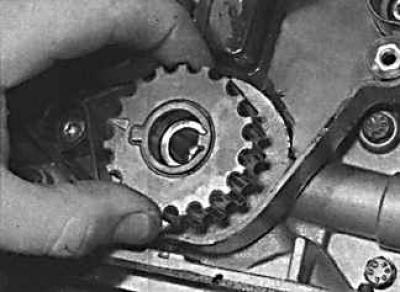

1. Check that the key is located in the groove of the crankshaft.
2. Align the groove of the crankshaft pulley with the key and install the pulley on the crankshaft.
3. Install the toothed belt.
Tension mechanism
Removing
1. Remove the toothed belt.

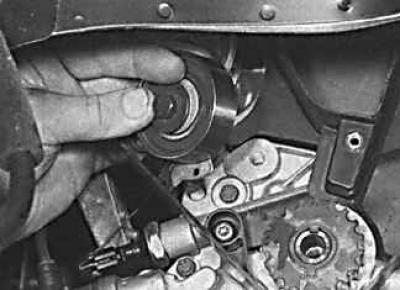

2. Remove the bolts and remove the tensioner assembly from the oil pump housing.
Installation

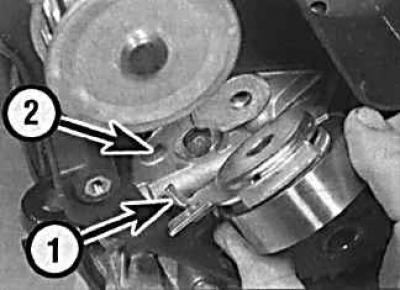

Install the toothed belt tensioner (1) on the oil pump housing. In this case, the protrusion on the base plate must be correctly located in the hole in the oil pump housing (2). Tighten bolts of fastening of the mechanism of a tension of a gear belt the demanded moment.
