Rear window wiper motor (Opel Frontera B)

Removal

Disconnect the cable from the negative battery terminal.

Remove the trim from the tailgate (see the relevant chapter).

Remove the rear window wiper arm (see the relevant chapter).

Disconnect the connector from the rear window wiper motor.

Loosen the rear window motor lever shaft mounting nut.

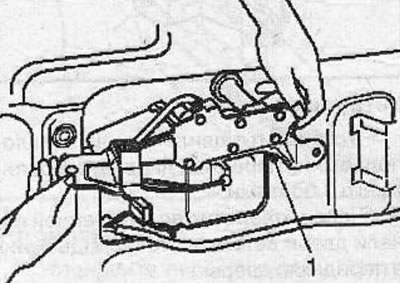

Remove 2 bolts and rear window wiper motor (1) and gasket.

Installation

Install the rear window wiper motor with the gasket and secure with the bolts, tightening them to a torque of 10 Nm.

Install the rear window motor lever shaft mounting nut and tighten it to 9 Nm.

Connect the connector to the rear window wiper motor.

Install the rear window wiper arm (see the relevant chapter).

Install the tailgate trim (see the relevant chapter).

Connect the cable to the negative terminal of the battery.
