2. Press the clamps and remove the seal strips.
3. Remove the rear door glass holder by lifting it up from the door, after first unscrewing its mounting screws.
4. Remove the glass by lifting it up and tilting it as shown in Figures 11.17 and 11.18 (cm).
5. Reinstall by following the above steps in reverse order, remembering to adjust the glass holders if necessary to ensure smooth and even movement.
6. In case of electric window lift mechanisms installed, please contact for details Chapter 12.

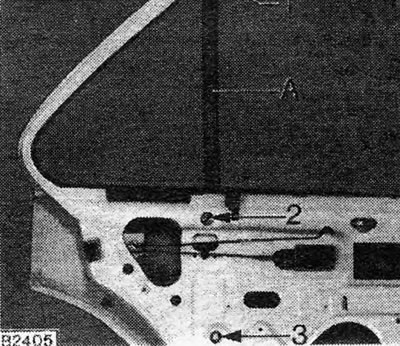

Figure 11.15. Rear door glass fastenings: 1. Upper mount; 2. Central fixing screw of the glass holder; 3. Bottom glass holder mounting screw; A. Rear door glass divider

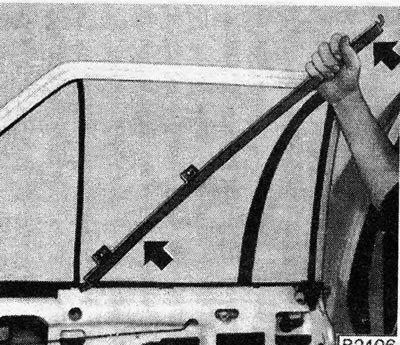

Figure 11.16. Removing the rear door glass holder: Shoot in the direction indicated by the arrows

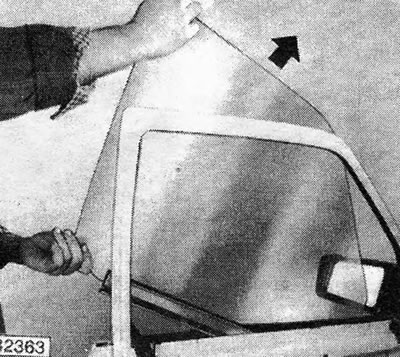

Figure 11.17. Removing the front door glass: Shoot in the direction indicated by the arrows

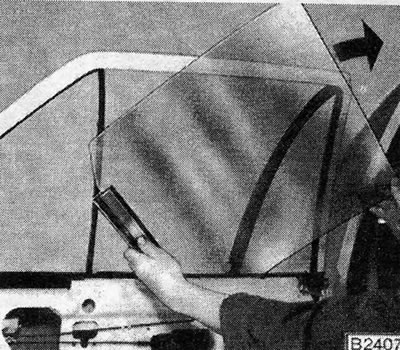

Figure 11.18. Removing the rear door glass: Shoot in the direction indicated by the arrow
