Warnings:
- Before disconnecting the connectors from the engine control unit, turn off the ignition.
- Do not touch the engine control unit connector contacts.
Removal
Disconnect the cable from the negative battery terminal.
Remove the center console and the front and rear portions of the center console (see the relevant chapter).

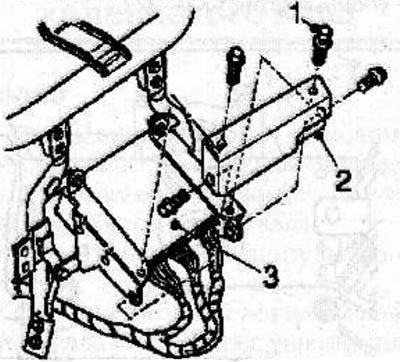

Drill out the shear head bolt (1) securing the anti-theft plate (2) to the engine control unit (3), then unscrew the second bolt and remove the anti-theft plate.
Disconnect the three connectors from the engine control unit.
Remove the bolts and remove the engine control unit bracket from the support frame.
Remove the engine control unit from the bracket.
Installation
Install the engine control unit onto the bracket.
Install the ECU bracket onto the support frame and secure with bolts.
Connect the three connectors to the engine control unit.
Install the anti-theft plate onto the engine control unit and secure with bolts. Tighten the new shear head bolt until the head shears off.
Install the center console and the front and rear portions of the center console (see the relevant chapter).
Connect the cable to the negative terminal of the battery.
