Removal
1. Disconnect wiring connector 1 from intake air temperature sensor 2 (figure 2.82).
2. Remove the intake air temperature sensor 1 from the intake manifold (figure 2.83).
Installation
3. Installation is carried out in the reverse order of removal.

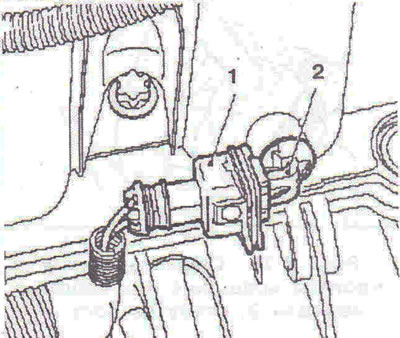

Figure 2.82. Disconnect wiring connector 1 from intake air temperature sensor 2.

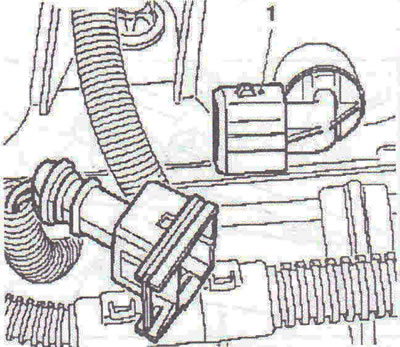

Figure 2.83. Remove intake air temperature sensor 1 from the intake manifold.
