2. Remove the threshold trim (see Section 42).
3. Remove the rear seat and rear seat back (see Section 55).
4. Turn out 2 lower fixing screws of a back lateral furnish of salon (see resist. illustration), release the tabs and remove the trim.

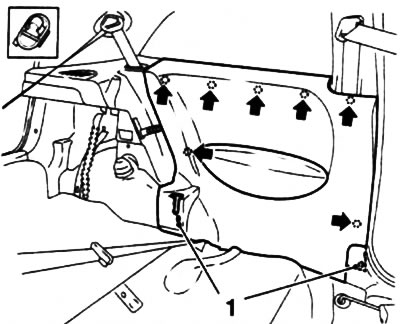

45.4. bottom screws (1) and clamps (indicated by arrows) rear side trim mounts (3 door hatchback)
5. Install in reverse order of removal, making sure the inside edge of the seal is on top of the trim. Check the condition of the clamps, replace if necessary.
