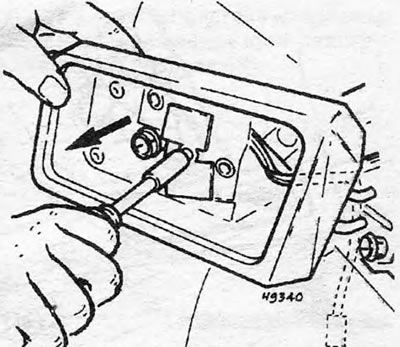

Figure 11.59. Removing the mirror motor
1. Remove the mirror glass as described above.
2. Remove the interior door trim panel as described in Section 12, and disconnect the mirror wiring connector.
3. Tilt the mirror forward and remove the screws, then remove the motor.
4. Reinstallation is carried out by performing the above steps in reverse order.
