Removal
1. Disconnect the wiring connectors from the headlight.
2. Remove the turn signal and unscrew the bolts A securing the radiator grille (figure 9.37).

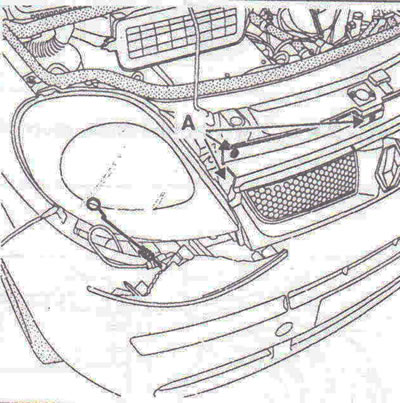

Figure 9.37. Remove the direction indicator and unscrew the bolts A securing the radiator grille.
3. Unscrew the bolts B of the headlight unit mount (figure 9.38).

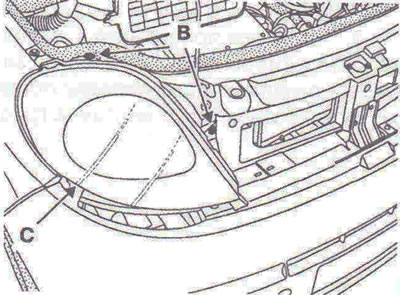

Figure 9.38. Unscrew the bolts B securing the headlight unit.
4. Remove the headlight by disconnecting the lower mount C (figure 9.39).

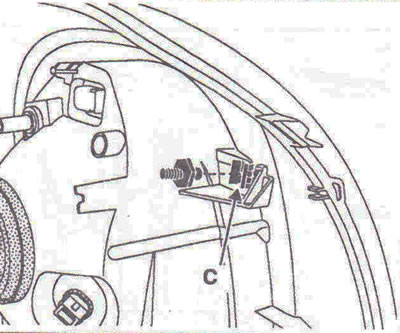

Figure 9.39. Remove the headlight by disconnecting the lower fastening C.
Installation
5. Installation is carried out in the reverse order of removal. After each removal of the headlights, it is necessary to adjust them (figure 9.40):
- place the vehicle on a level surface without applying the parking brake;
- the vehicle should be unloaded and its fuel tank should be as full as possible;
- set the corrector handle to position "0";
- adjust the headlight beam in the vertical plane with screw D;
- adjust the headlight beam horizontally using screw E.

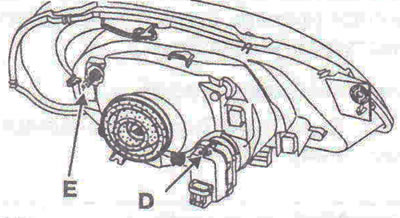

Figure 9.40. After each removal of the headlights, it is necessary to adjust them.
