2. Separate the frame of the gear lever boot from the center console and wrap the boot up.
3. Using a plastic wedge, press the spring clips of the lower edge of the cigarette lighter panel and separate the panel from the center console (see resist. illustration).
27.3. Removing the panel (1) cigarette lighter and switches for electric heating of the front seats (with appropriate equipment) on Corsa models
Note: On models of the corresponding configuration, switches for electric heating of the front seats are mounted in the cigarette lighter panel.
4. Using a screwdriver, unlock and disconnect the 2 connectors of the electrical wiring of the front seat electric heating switches (see resist. illustration). Disconnect the cigarette lighter wiring connector.

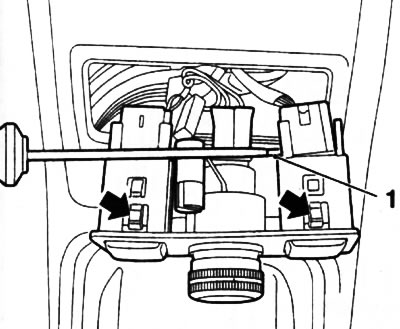

27.4. With a screwdriver (1) Unlock the wiring harness connector of the front seat electric heating switch (Corsa C models) - arrows indicate spring clips
5. If necessary, alternately press the latches of the electric heating switches of the front seats down with a screwdriver (see resist. illustration) and pull the switches out of the panel in the direction indicated by the arrows.

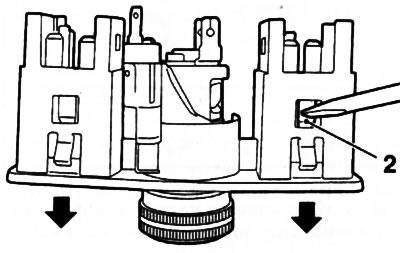

27.5. Press the latch (2) down and pull the front seat heating switch in the direction of the arrows (Corsa C models)
6. Installation is carried out in the reverse order.
