Depending on the configuration, a large number of relays and fuses are also located in the engine compartment:
1 - radiator fan (K87);
2 - radiator fan (K67);
3 - radiator fan (K51);
4 - radiator fan (K52);
5 - radiator fan (K53);
6 - radiator fan (K28);
7 - radiator fan (F50 and F52); or without air conditioning (F72);
8 - radiator fan without air conditioning (K67);
9 - number of revolutions, compressor (K60) or without air conditioning radiator fan with coasting after switching off (K34);
10 and 11 - not installed;
12 - fuel pump with 1.8/2.0 l engines (K44);
13 - fuel pump with 1.6 l engine (K44) or injection valves with 1.8/2.0 l engines (K43);
14... 17 - not installed;
18 - headlight washer system (K97);
19 - secondary air boost (K12).

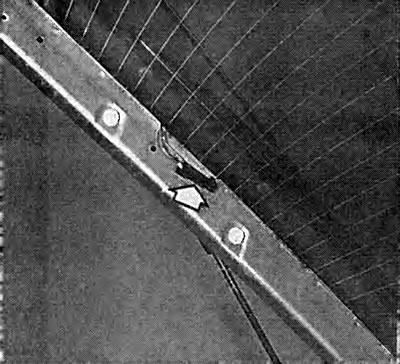

After removing the trim, the rear window heating wire connector becomes accessible.

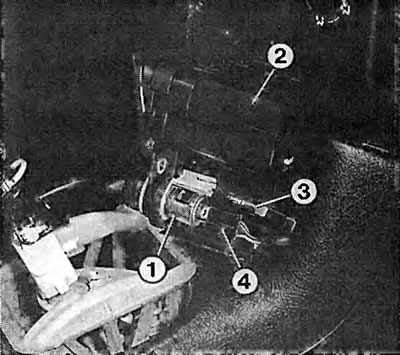

After removing the ashtray/bottle holder (2), the cigarette lighter (1) is accessible. The following numbers indicate: 3 — cigarette lighter lighting; 4 — cigarette lighter wire connector.
Removal the cigarette lighter
Remove the center console, see chapter "Salon".
The source is on the online website [www.opelbook.ru]
Remove the ashtray/bottle holder.
Remove from the cigarette lighter socket.
Disconnect both connectors from the back of the holder.
Remove the holder from the light ring.
Unlock the cartridge and remove it together with the light ring.
