Removal
1. Disconnect the two clips A, then remove the seat belts (figure 10.24). Unscrew the two bench seat fasteners 1, then 2.
Figure 10.24. Disconnect the two clamps A, then remove the seat belts. Unscrew the two bench seat fasteners 1, then 2.
2. Move the bench seat towards the rear of the vehicle 3 (figure 10.25). Lift the bench seat at the rear 4. Slide the bench seat toward the front of the vehicle 5, then remove the seat.

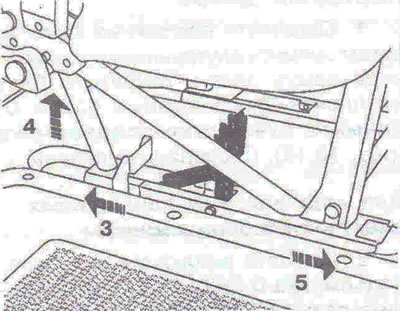

Figure 10.25. Slide the bench seat toward the rear of the vehicle 3. Lift the bench seat at the rear 4. Slide the bench seat toward the front of the vehicle 5, then remove the seat.
Installation
3. Before installation, make sure the bench seat anchors are tight (figure 10.26). Tightening torque: 44 Nm.

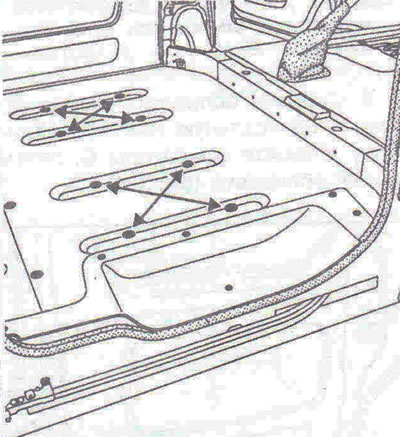

Figure 10.26. Before installation, make sure the bench seat anchors are tight.
