Contents: Removal ⬇ Installation ⬇
Removal

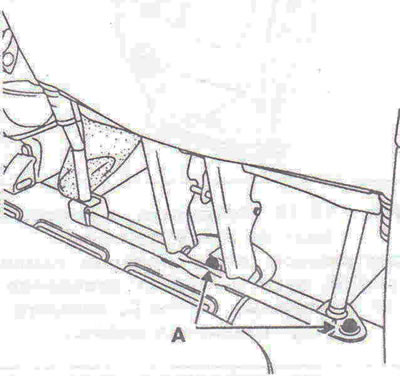

1. Unscrew the four mounting bolts A (figure 10.20).
Figure 10.20. Unscrew the four mounting bolts A.

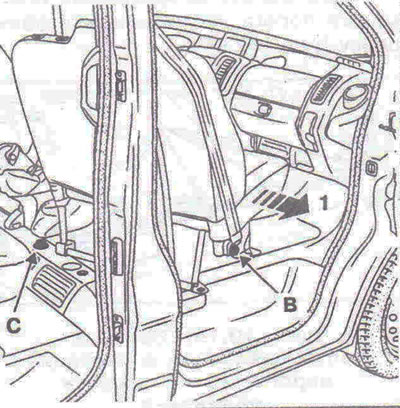

2. Loosen the belt mounting bolt B on the bench seat (figure 10.21). Disconnect the wiring harness connector under the seat. Secure the sill trim, then release the bench seat in position 1 (centering pin C holds the seat in the rear).
Figure 10.21. Loosen the belt fastening bolt 8 on the bench seat. Secure the sill trim, then release the bench seat in position 1 (centering pin C holds the seat in the rear).
Installation
3. Before installing the seat, check the external condition of the connectors in the frame and on the body.

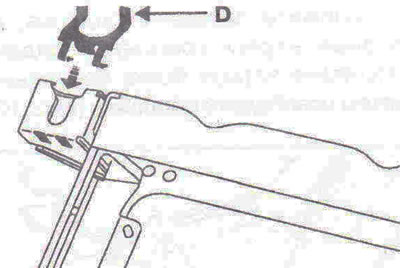

4. Make sure there is a metal bracket O on the left rear bottom of the frame base (figure 10.22).
Figure 10.22. Check for the presence of the metal bracket D on the left rear bottom of the frame base.

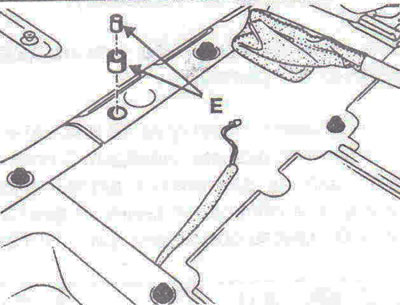

5. Ensure that seat leveling spacers E are present at each mounting point (figure 10.23).
Figure 10.23. Ensure that seat leveling spacers E are present at each mounting point.
