Removing
1. Loosen the pinch bolt securing the selector rod to the linkage.
2. Wring out a fixing bracket, then take a rotary axis of a universal joint of draft.
3. Release the spring clip, then remove the shroud pivot pin from the bracket on the rear engine/transmission mount.
4. Remove draft from the car.
Installation

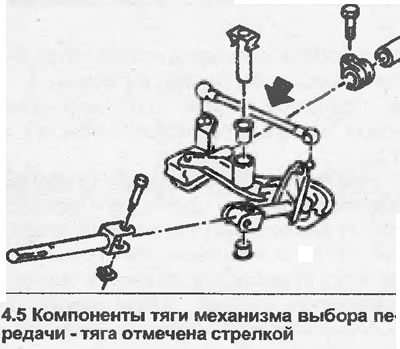

5. Inspect linkage components for signs of wear and replace as needed (see illustration). Further dismantling is not recommended.
6. Install in reverse order, but before tightening the selector rod pinch bolt, adjust the selector rod as described in Chapter 2.
