2. Remove the screw (see resist. illustration) securing the air supply hose, wring out the hose and remove it.

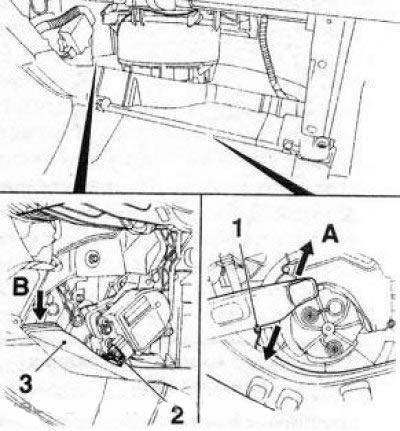

15.2 Removing/installing the sleeve (3) air supply to the passenger footwell: 1. Fixing screw; 2. Wiring connector;
Arrow A - Press the sleeve when removing
Arrow B - Landing socket on the air distributor housing
3. On models that are not equipped with a climate control system, wring out the latch and disconnect the electrical wiring connector for the electric motor of the air distribution control drive.
4. Remove the air supply hose to the passenger footwell.
5. Installation is made in an order, the return to an order of removal. Insert the sleeve into the seat (see illustration 15.2) on the air distributor housing and fix by pressing upwards.
