Some variants of the Vectra model are equipped with a trunk lid trim. This overlay can be installed independently.
Installation
Remove the trunk handle.

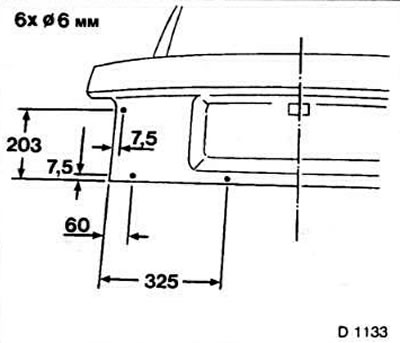

trunk lid

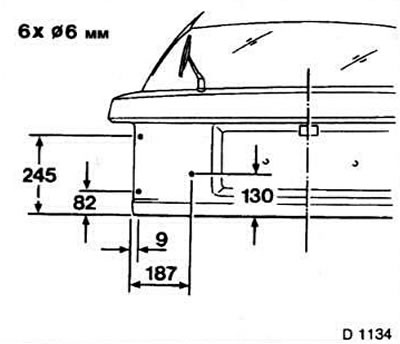

Fifth door
Use a 5.5 mm drill to drill the mounting holes according to the dimensions shown in the above figures.
Clean the holes and treat with anticorrosive.
Install the trunk lid trim.
Attention! After installing the lining, insert the trunk lid hinge spring into the middle hole. In conjunction with the spoiler, insert the spring into the rear hole.
