Fog light (Opel Frontera B)

Removal

Disconnect the cable from the negative battery terminal.

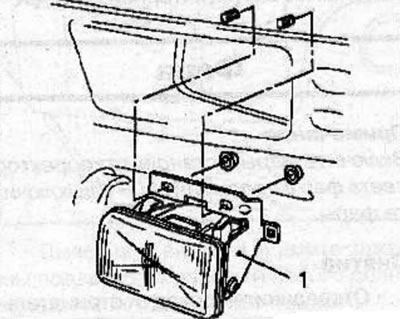

Remove the 2 nuts and remove the fog light (1) from the mounting bracket located behind the front bumper.



Disconnect the connector from the fog light.

Installation

Connect the connector to the fog light.

Install the fog lamp onto the mounting bracket and secure with 2 nuts, tightening them to a torque of 7 Nm.

Connect the cable to the negative terminal of the battery.

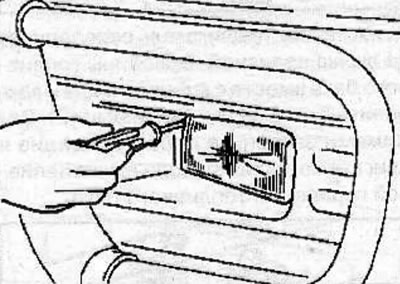

Turn the adjusting screw to adjust the fog light horizontally.
