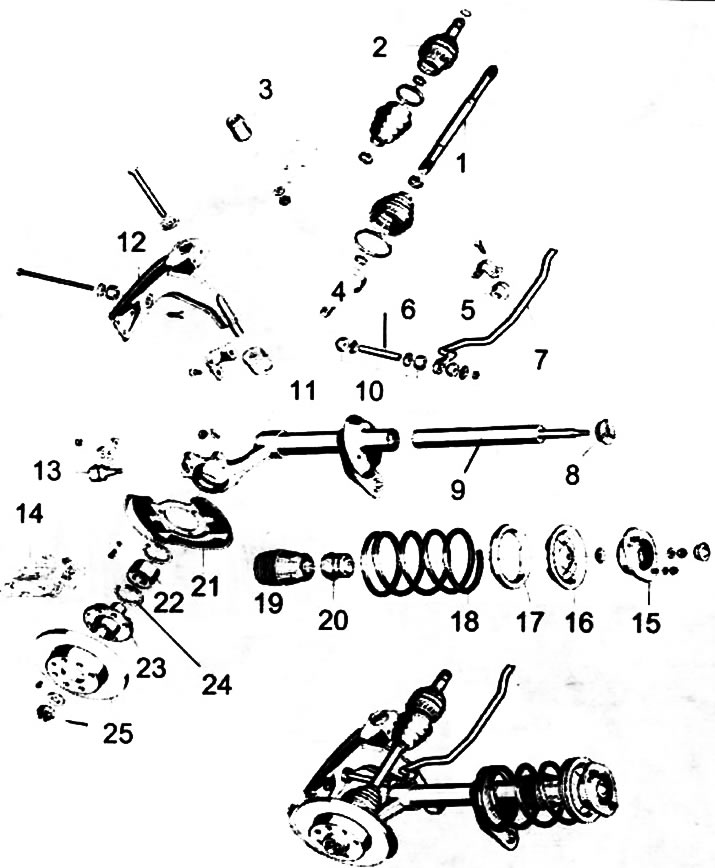

1 - drive shaft, 2 - internal constant velocity joint, 3 - damping sleeve (silent block), 4 - outer constant velocity joint, 5 - bearing, 6 - spacer tube, 7 - stabilizer, 8 - nut, 9 - shock absorber strut, 10 - rubber buffer, 11 - steering knuckle, 12 - lever, 13 - ball joint. 14 - brake caliper bolts (coat with protective grease Loctit 262), 15 - thrust bearing, 16 - spring cup, 17 - damping washer, 18 - front spring (if only one spring is faulty, you should change the springs of one suspension), 19 - guide ring, 20 - rebound buffer, 21 - caliper shield, 22 - hub bearing, 23 - wheel hub, 24 - retaining ring, 25 - brake disc
The impact on the front wheels is taken by two shock absorber struts, which are connected to the body and transverse levers. In case of repair, the shock absorber strut can be replaced entirely. An additional stabilizer prevents the body from tilting when turning and ensures good grip of the front wheels with the road. The driving force is transmitted through two drive shafts to the front wheels. The front suspension of the OPEL KADETT is maintenance-free.
