Note: The following is a description of the removal/installation of the front wheel arch trim. The rear pad is removed / installed in a similar manner.
1. Detach the bumper cover from the corresponding fender (see Sections 7 and 8).
2. Loosen the fixing nuts (see resist. illustration) and separate the lining from the wheel arch.

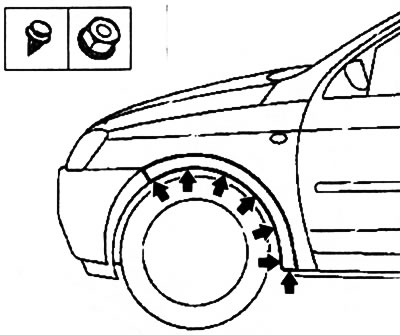

11.2. points (indicated by arrows) front wheel arch moldings (Corsa C models)
3. Installation is carried out in the reverse order.
