2. Disconnect the ABS wheel sensor wiring connector (see accompanying illustration), loosen the 4 fastening nuts and remove the hub assembly with the brake shield.

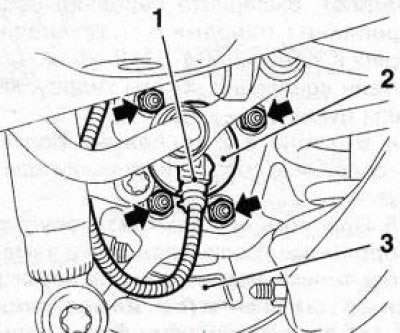

10.2 Nuts (shown by arrows) hub assembly fasteners (2) of the rear wheel and the ABS sensor wiring connector (1) - the hub assembly is removed together with the brake mechanism shield (3)
3. Clean the mating surfaces of the hub assembly. Install the hub assembly and secure it with new nuts. Tighten the nuts to the required torque in 3 steps (see Specifications).
4. Further installation is carried out in the reverse order of removal.
