2. Remove the latch (A), loosen the 2 front nuts, unscrew the 2 fixing bolts and remove the left spoiler shield (see resist. illustration).

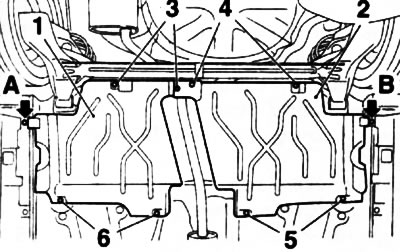

3.2. Lower spoiler mounts (Corsa-Eco models): 1. Left shield; 2. Right shield; 3, 4. Mounting bolts; 5, 6. Fixing nuts; A and B. clamps
3. Remove the retainer (IN), loosen 2 nuts and remove 2 bolts securing the right spoiler shield (see illustration 3.2), remove the shield from the bottom.
4. Installation is carried out in the reverse order.
