Place a strong rag between the power window handle and the rubber ring and pull firmly. Now turn the handle until it pops off the power window pinion by itself.

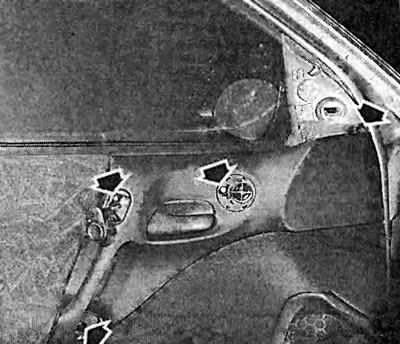

The arrows show all the mounting bolts that secure the inner handle to the metal of the door.

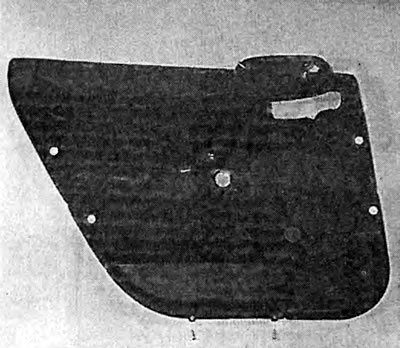

All the details of the front door lining are photographed here. You fold the fastening clips forward on the door trim according to their installation position.

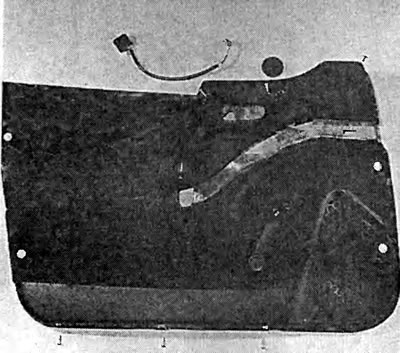

Here are photographed all the details of the lining of the rear door. You fold the fastening clips forward on the door trim according to their installation position.
Door seal care
Door gaskets on Vectra models require special care as cracked gaskets are not only leaky, but also contribute to increased wind noise while driving. The best way to care for pads is deer fat. It has a pleasant side effect, gaskets do not freeze to the body in winter.
Door lock system adjustment
In older models, rubber door gaskets could sit down. This leads to knocking, drafts and rainwater intrusion.
Mark the location of the lock bracket on the B-pillar with a felt-tip pen.
Loosen the stop of the lock with a star-shaped key by half a turn.
Push the bracket inward a little and tighten.
If the door is new, then carefully close it with the latch loosened.
Then carefully open the door again and screw the lock stop in this position.
