Removal and installation interior rear view mirror (Opel Corsa C)

1. On models not equipped with a rain sensor, to remove the interior rearview mirror, you need to press the locking clip with a screwdriver (see accompanying illustration) and remove the mirror from the holder (arrow A). To install, insert the mirror into the guides (arrows B) of the holder and push it until it locks into place.

35.1. Removing the rear view mirror (models without rain sensor): 1. Locking bracket; 2. Holder

2. On models equipped with a rain sensor, it is necessary to first disconnect the battery (see Chapter 5).

3. Separate the halves of the rain sensor cover and remove them (see accompanying illustration). Disconnect the rain sensor and mirror dimming device wiring connectors.

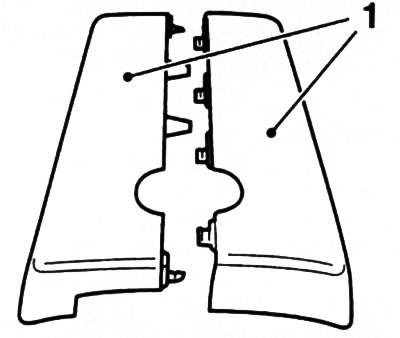

35.3. Rain sensor cover (1)

4. Pull the mirror down forcefully from the holder (see accompanying illustration).

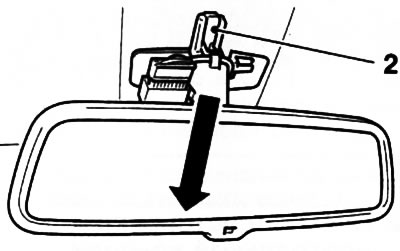

35.4. To remove the interior rear-view mirror, it is necessary to forcefully pull the mirror out of the holder (2) in the direction indicated by the arrow (models with rain sensor)

5. Installation is carried out in reverse order.
