Rear suspension anti-roll bar (Opel Omega B)

Removal

1. Disconnect the rear suspension height sensor connector. Mark the position of the sensor arm and disconnect it from the stabilizer bar connecting rod.

2. Disconnect the ABS sensor connectors.

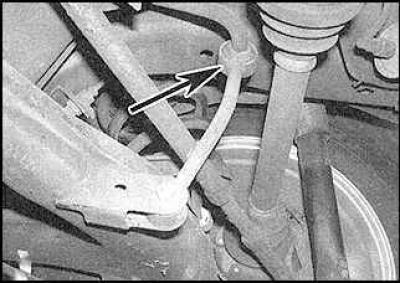

3. Disconnect the connecting links from the suspension arms (the arrow indicates the bolt that secures the connecting link to the anti-roll bar).

The source is on the online website: opelbook

4. Lower the final drive slightly.

5. Loosen the mounting bolts and remove the anti-roll bar.

Installation

Installation is carried out in the reverse order of removal.
