Rear suspension crossmember mounts (Opel Omega B)

Removal

1. Lower the rear of the exhaust system by approximately 30 cm.

2. Remove the brake hoses from the brackets on the suspension arms.

3. Place a support under the final drive.

4. Loosen the mounting bolts and remove the crossmember mounting brackets.

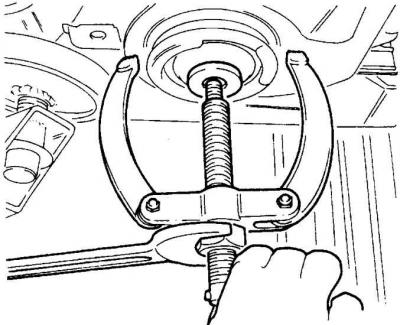

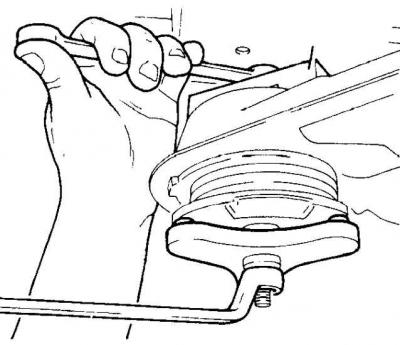

5. Use Opel-specific tools to remove (left) and install (right) the fasteners.

Installation

Installation is carried out in the reverse order of removal.
