Starter specifications (Opel Kadett E)

The cars were equipped with a Bosch or Delco-Remy starter, which is a four-pole DC electric motor with series excitation. The starter has a nine-tooth drive pinion, a two-winding traction relay and a drive lever. The armature shaft rotates in bushings installed in the starter covers. The drive pinion tooth module is 2.117/1.814. The direction of rotation is right (if you look from the drive side).

Brand and type/catalog numbers:

cars with engine "12SC": Bosch/0 001 157 025 or Delco-Remy 3 471 163;
cars with engines "13N", "13S", "14NV": Bosch DF (R) 12V 0.7 kW/O 001 157 024 or Delco-Rem/ 3 471 168;
cars with engines "16S", "18E" Bosch EF 12V 0.85 kW/O 001 208 224 or Delco-Remy 3 471 155;
cars with engines "16SV", "C16NZ": Bosch EF 12V 0.9 kW/O 001 112 008 or Delco-Remy 9 000 700;
cars with engines "20NE", "C20NE", "20SEH", "20XE": Bosch EF 12V 1.4 kW/0 001 108 047 or Delco-Remy 3 471 170.

Characteristics of some Bosch brand starters

* Data without brackets indicates a terminal voltage of 7 V. Data in brackets indicates a terminal voltage of 8 V.
** Data without brackets indicates a terminal voltage of 6 V. Data in brackets indicates a terminal voltage of 7.7 V.

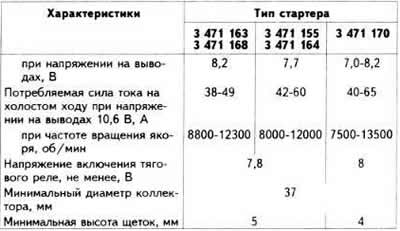

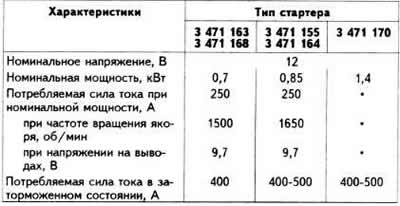

Technical characteristics of some Delco-Remy starters
