Removing
Disconnect the earth cable from the battery.

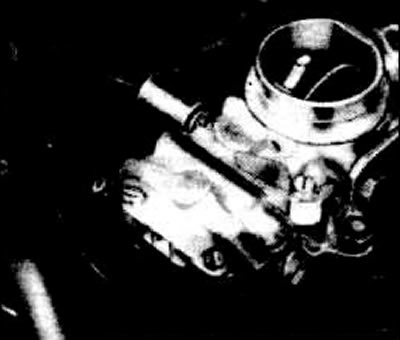

Remove the air filter see paragraph 4.44.
Remove the cable from the idle shutoff valve.
Remove the clamps from the fuel line, disconnect the hose.
Remove air (starting) damper. To do this, loosen the screws, remove the starter. Remove the throttle cable from the rubber clips. Remove the fuse from the tapered support bearing. Remove the tapered bearing with a screwdriver.
Remove vacuum hose.
Unscrew the screws, remove the carburetor and plug the intake pipe with a rag.
Installation
Install carburetor with new seal and tighten bolts to 20 Nm
Fix conductors and male
Connect the starter and adjust, see par. 4.18 and 4.22.
Fasten the throttle cable to the support. Insert the fuse into the hole of the opera cone bearing, fasten the cone bearing to the ball head. Install the fuse all the way and install around the ball head. Adjust throttle cable.
Connect ground cable to battery.
Install the air filter see paragraph 4.44.
Check idling and CO content in exhaust gases, see item 4.11.
