Removal and installation the Easytronic clutch control module (Opel Corsa C)

1. Remove the Easytronic transmission brake fluid reservoir cap.

2. Disconnect the connector of the supply wiring harness (see accompanying illustration).



3. On Corsa-Eco models, remove the engine sump guard.

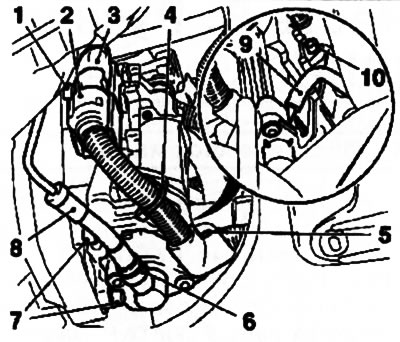

4. Release the clutch control module wiring harness from the two holders, disconnect the connector and remove the harness (see illustration 7.2).

5. Disconnect the clutch hydraulic line supply hose from the module (see illustration 7.2), collect the spilled liquid with a rag.

6. Remove the hydraulic pressure line clamp (see illustration 7.2), disconnect the line from the module and install the retainer in place, collect the spilled liquid with a rag.

7. Remove 4 mounting bolts (see illustration 7.2) and remove the Easytronic control module.

8. If necessary, remove the brake fluid reservoir (see illustration 7.8a), for which you must first unscrew 3 bolts and remove the clutch control module mounting bracket (see illustration 7.8b).

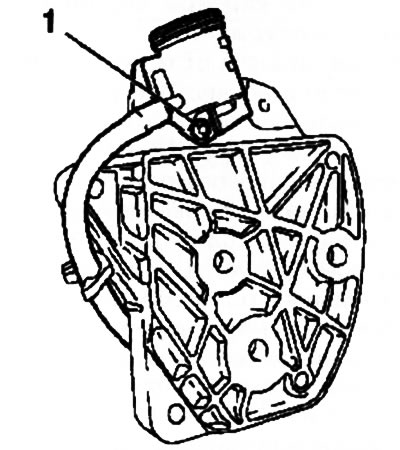

7.8a. Bolt (1) for fastening the clutch reservoir (models with Easytronic)

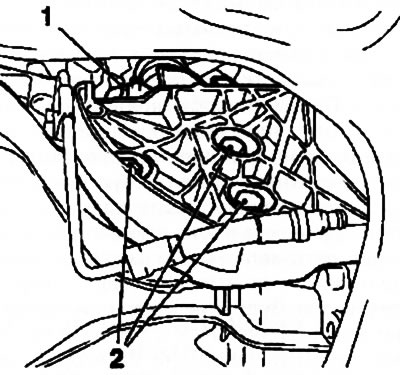

7.8b. Clutch control module bracket mounting bolts (2) (models with Easytronic): 1. Wiring Fixing Bracket

9. Installation is carried out in reverse order.
