1. Wipe the surfaces of the pressure plate and flywheel with a clean cloth. When installing, be careful not to get oil or grease on the friction or gasket surfaces.

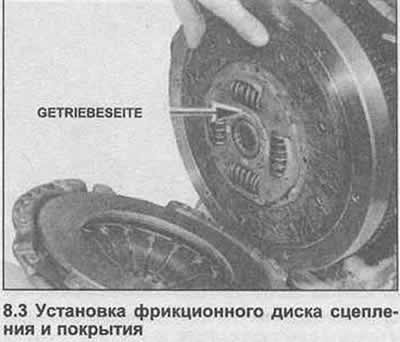

2. Position the friction disc on the flywheel with the protruding hub pad facing out. Surface with word «GETRIEBESEITE» on the hub should also face outwards.
3. Install the cover, loosely insert the bolts (photo). Align the pre-made marks if the old coating is being installed.

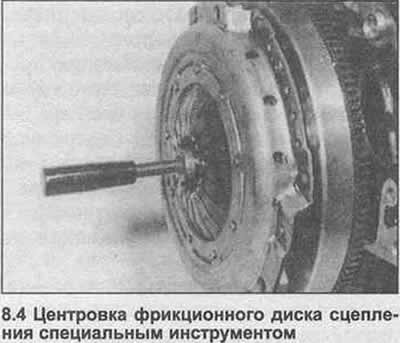

4. The friction plate should now be centered so that when the gearbox is installed, the input shaft will fit through the slots in the friction plate into the bushing bearing at the end of the crankshaft. It is better to use a special tool for centering the clutch (photo), or an old gearbox input shaft.

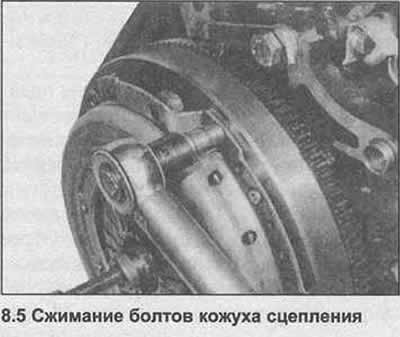

5. Make sure the tool is seated correctly in the friction disc and bushing bearing, then tighten the clutch housing bolts diagonally to the specified torque (photo). Remove the tool.
6. Install the gearbox as described in Section 6.
