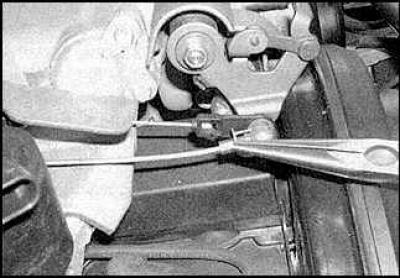

Removing

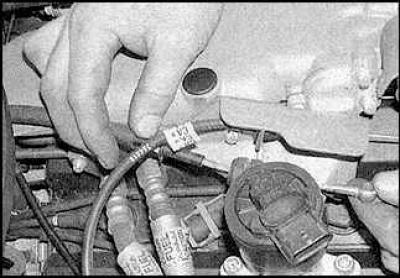

1. Release the retaining clip and disconnect the cable from the throttle lever.

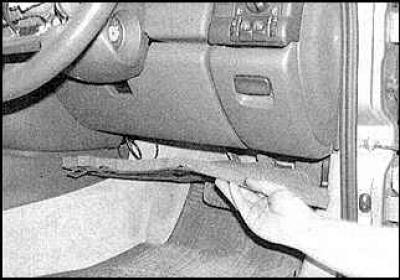

2. Remove the cable sheath from the mounting bracket.

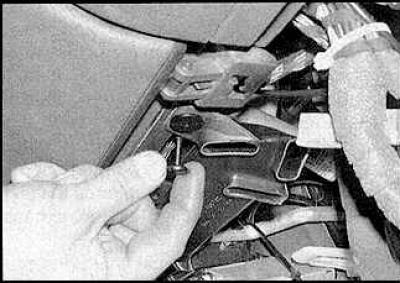

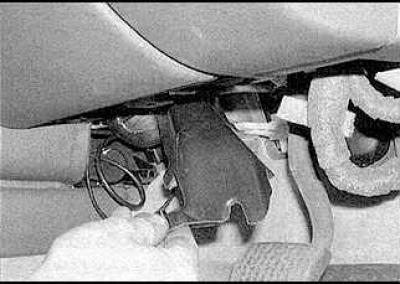

3. Release the mounting clips and remove the trim panel.

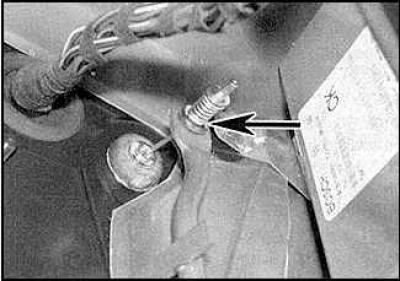

4. Get a fixing pin and remove an air branch pipe.
5. Disconnect the cable from the accelerator pedal (indicated by an arrow) and take it off.
Installation
Installation is carried out in the reverse order of removal.
Adjustment
Adjust the tension of the cable and install the mounting clip in place.
