Main cooling fan (four-cylinder models)
Removal and installation
1. Disconnect the negative battery cable.
2. Disconnect the wires from the fan motor.
3. Remove the two screws securing the fan to the back of the heatsink.
4. Detach the fan shroud from the bottom mount and remove the shroud along with the fan.
5. Remove the three nuts and remove the fan motor.
6. Installation is carried out in the reverse order of removal.
Main cooling fan (six-cylinder engines)
Removal and installation
1. Remove the battery.
2. Disconnect the secondary air shut-off valve from the fan shroud.
3. Remove the screws and remove the top radiator cap.
4. Remove the pre-chamber of the multi-flow air intake system.
5. Disconnect the wires from the back of the radiator motor.

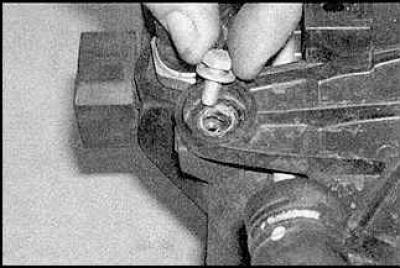

6. Remove the auxiliary water pump located on the side of the fan shroud.

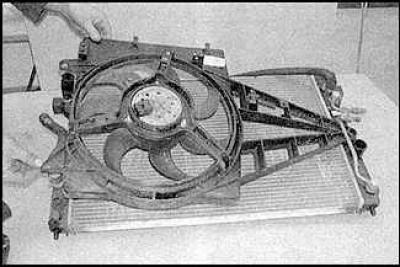

7. Remove the three screws securing the fan shroud to the back of the heatsink.
8. Detach the fan shroud from the bottom mount and remove the shroud along with the fan.

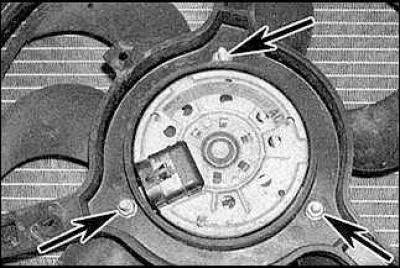

9. Remove the three nuts and remove the fan motor.
10. Installation is carried out in the reverse order of removal.
Auxiliary cooling fans
Removing
1. Disconnect the negative battery cable.

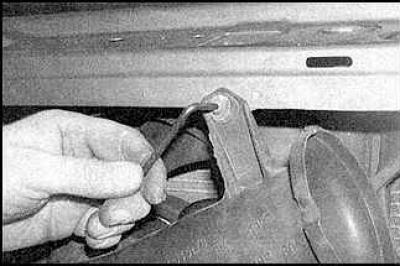

2. Remove the radiator guard and cross member at the front of the engine compartment.

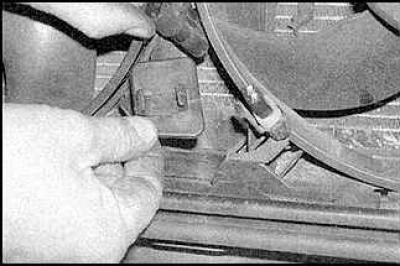

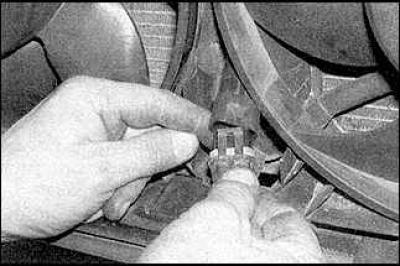

3. Unscrew the screws and disconnect the air intake from the cross member.

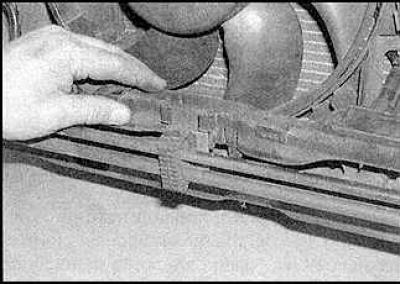

4. Remove the cover and disconnect the auxiliary fan harness from the multi-pin connector.

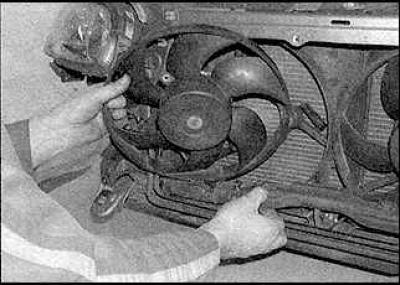

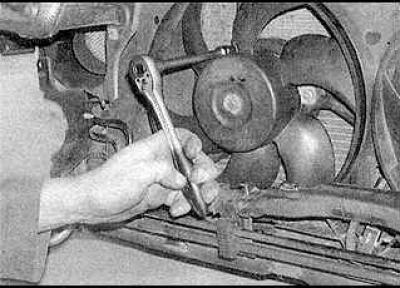

5. Disconnect the wire harness groove from the body.
6. Remove the screws and remove the fan and fan motor from the shroud.
Installation
Installation is carried out in the reverse order of removal.
