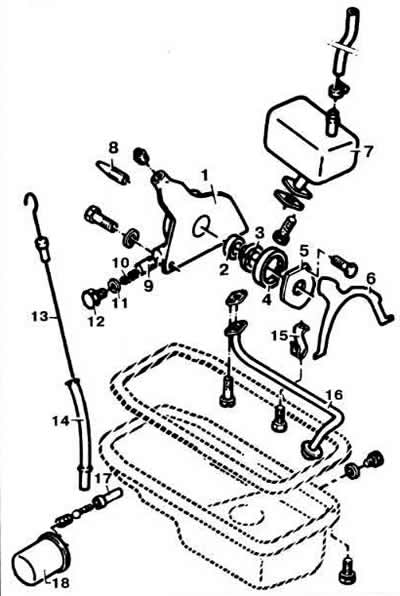

Details of the lubrication system of engines «13M», «13S», «14NV»:
1 - oil pump housing;
2 - stuffing box;
3 - drive gear;
4 - driven gear;
5 — cover of the oil pump;
6 - gasket;
7 - oil separator;
8 - pointer to the initial setting of the ignition moment;
9 — a pusher of the reducing valve;
10 - pressure reducing valve spring;
11 - cuff;
12 — stopper of the reducing valve;
13 - oil dipstick;
14 - oil dipstick tube;
15 - bracket;
16 - oil receiver tube;
17 - bypass valve body;
18 - oil filter.

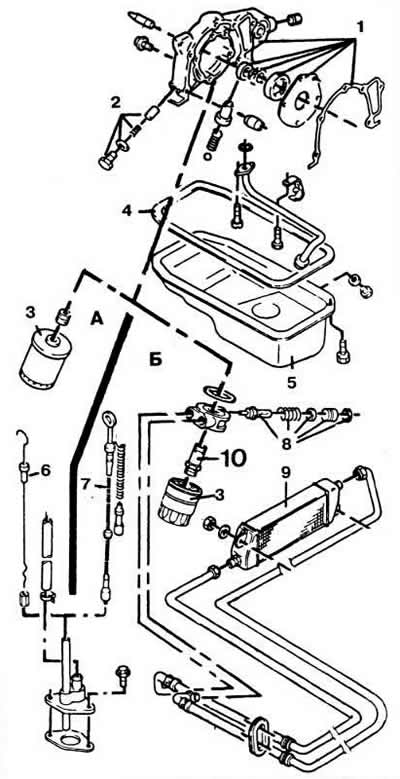

Lubrication system details:
A - engine» 16S»;
B - 418E engines», «18SE».
1 - parts of the oil pump;
2 - pressure reducing valve;
3 - oil filter with bypass valve;
4 - oil crankcase gasket;
5 - oil sump;
6 - oil dipstick;
7 - oil level indicator sensor;
8 - oil temperature thermostat;
9 - oil cooler;
10 - oil temperature sensor.

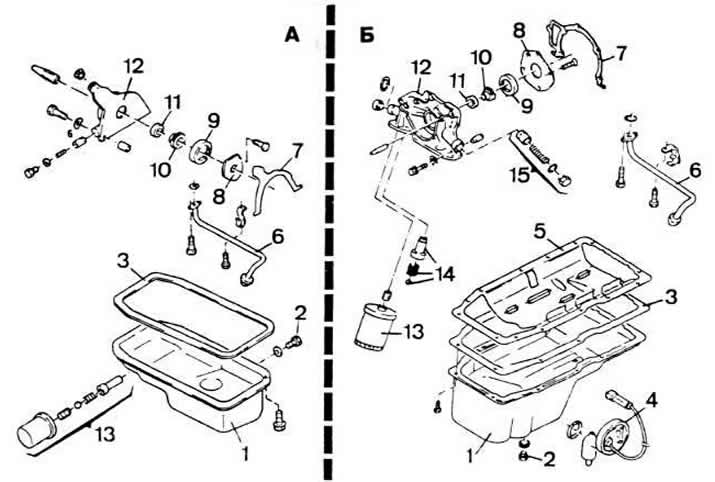

Lubrication system details:
A - engines «16SV», «C16NZ»;
B - engines «20NE», «C20NE», «20SEH».
1 - oil sump;
2 - drain plug;
3 - oil crankcase gasket;
4 - oil temperature sensor;
5 - oil deflector;
6 - oil receiver;
7 - gasket;
8 — cover of the oil pump;
9 - driven gear;
10 - drive gear;
11 - stuffing box;
12 - oil pump housing;
13 - oil filter;
14 - bypass valve;
15 - pressure reducing valve.

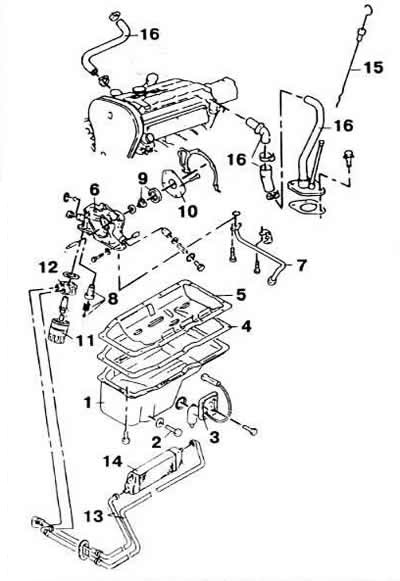

Parts of the engine lubrication system «20XE»:
1 - oil sump;
2 - plug of the drain hole of the oil crankcase;
3 - oil level indicator sensor;
4 - oil crankcase gasket;
5 - oil deflector;
6 - oil pump housing;
7 - oil receiver and strainer;
8 - pressure reducing valve;
9 - gears of the oil pump;
10 - oil pump cover;
11 - oil filter;
12 - adapter with fittings for connecting oil cooler pipes;
13 - inlet and outlet tubes of the oil cooler;
14 - oil cooler;
15 - oil dipstick;
16 - breather tube.
