Toothed Belt Drive — Design Description (Opel Kadett D)

Toothed belt drive

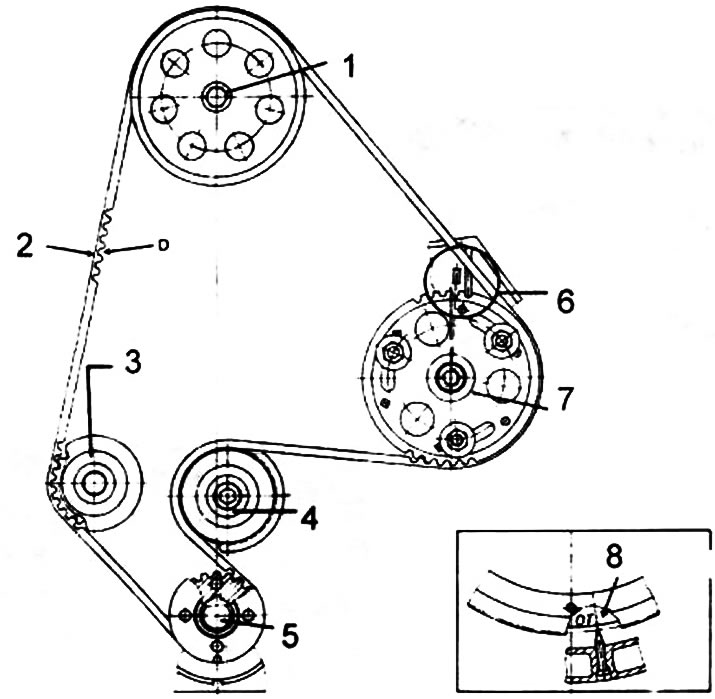

1 - camshaft drive gear; 2 - toothed belt; 3 - coolant pump gear; 4 - deflection roller; 5 - oil pump gear; 6 - Top dead center mark/high pressure fuel pump; 7 - fuel distribution pump; 8 - top dead center mark on the flywheel
