Removing
Disconnect ground wire.

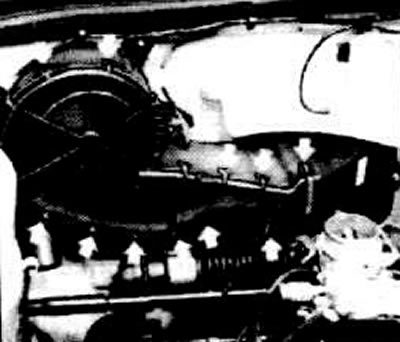

On vehicles with soundproofing, remove additional soundproofing.
Using a screwdriver, remove the fan motor housing cover (arrows).

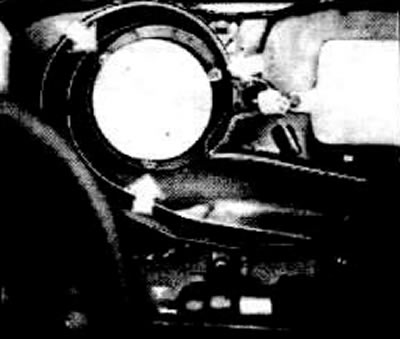

Disconnect the multi-pin plug from the motor.
Disconnect the centrifugal fan motor from the chassis.
Installation
Screw the fan motor together with the radial fan to the housing.

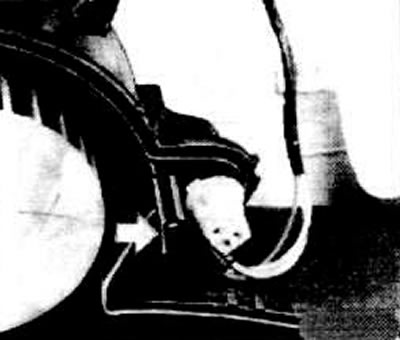

After installing the fan motor in the fan housing, lay the connecting cable in the corresponding channel of the housing.

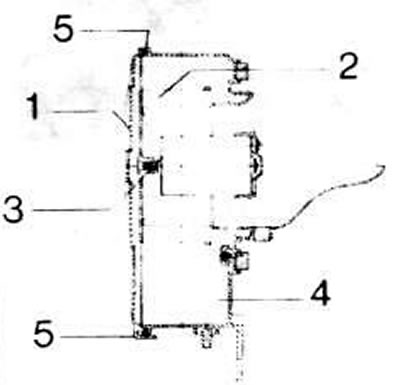

1 - cover
2 - radial fan
3 - fan motor
4 - body
5 - sealed with 1504784/90001897
Install the fan motor housing cover.
Connect the multi-pin plug to the motor.
In vehicles with soundproofing, install soundproofing.
