Turn signal switch and windshield wiper switch (Opel Kadett D)

Removal

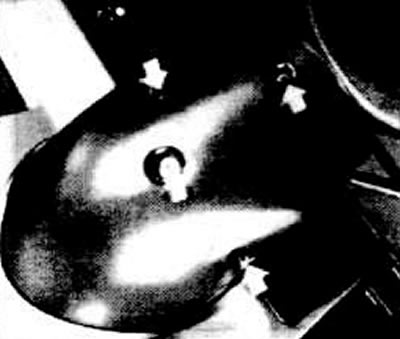

Disconnect the ground wire.

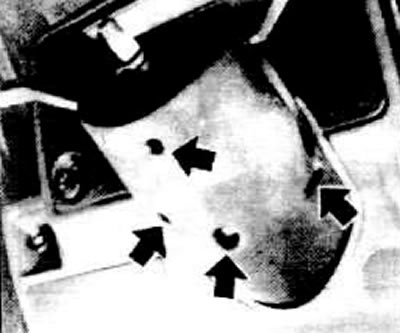

Remove the upper steering column support trim.

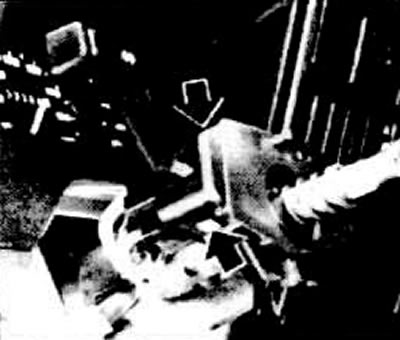

Remove the lower steering column support trim.

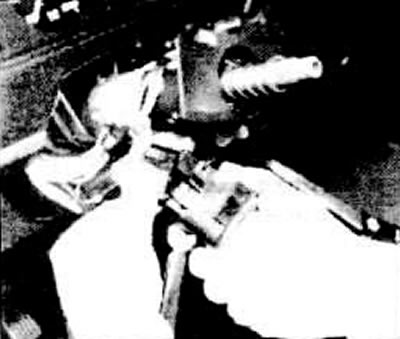

Remove the turn signal switch (left) and windscreen wiper switch (right) - both using the gearshift lever - from the housing. To do this, squeeze the locking tabs at the top and bottom.





Disconnect the multi-pin plug from the turn signal switch and windshield wiper switch.

Installation

Connect the multi-pin plug to the turn signal switch and windshield wiper switch.

Install the turn signal switch and windshield wiper switch into the housings by pressing the locking tabs at the top and bottom.

Install the upper and lower steering column support trims.

Connect the ground wire.
