Attention! If the central locking motor and the door lock were separated during disassembly, then the motor must be correctly adjusted during installation. Otherwise, the central lock or burglar alarm may not work.
Removing
1. Remove an upholstery of a door and disconnect an insulating film near the lock.
2. Disconnect the lock rods.

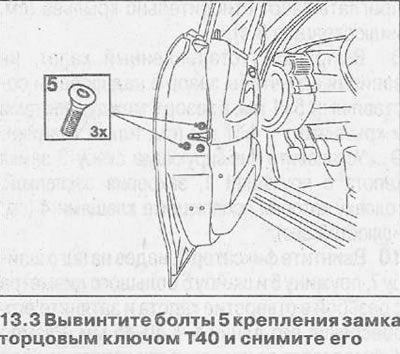

3. Unscrew the bolts 5 securing the lock with a T40 socket wrench and remove it (see illustration).
Installation
4. Fasten the drive rods to the lock.

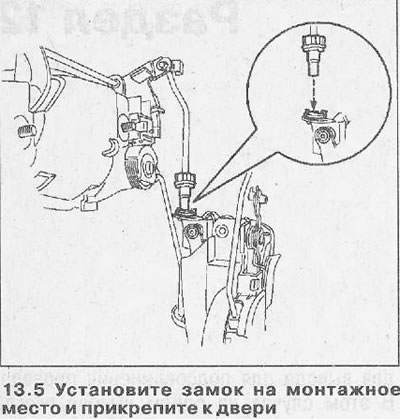

5. Install the lock on the mounting location and attach to the door (see illustration).
6. Install the door opening handle and, if necessary, adjust the central locking.
7. Adhere the insulating film with double-sided adhesive tape.
8. Establish an upholstery of a door.
