Zafira tailgate trim — removal and installation (Opel Zafira A)

The trim of the luggage compartment door must be removed to replace the door lock, its switch (cylinder) and electric locking drive, rear window wiper motor-reducer.

Removal

1. Prepare the car for work (see "Preparing the car for maintenance and repair").

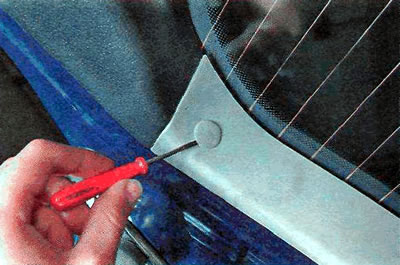

2. Using a thin slotted screwdriver, remove the two plugs from the left and right trim panels of the luggage compartment door glass.

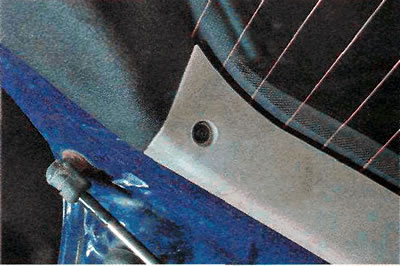

3. Using a TORX T25 key, unscrew the two bolts securing the left and right trim panels.

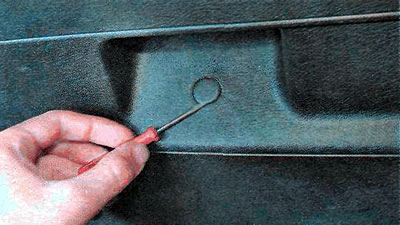

4. Using a thin slotted screwdriver, remove two plugs from the left and right sides of the luggage compartment door trim.

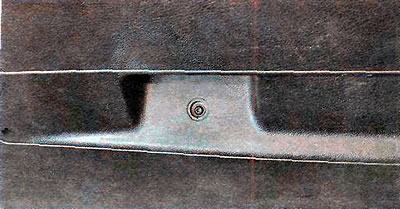

5. Using a TORX T25 key, unscrew the two screws on both sides of the trim.

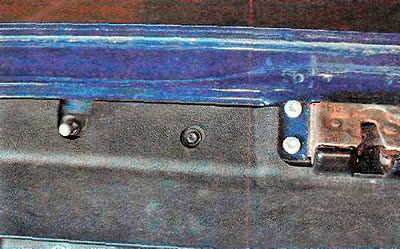

6. Using the same key, unscrew the two lower screws on both sides.

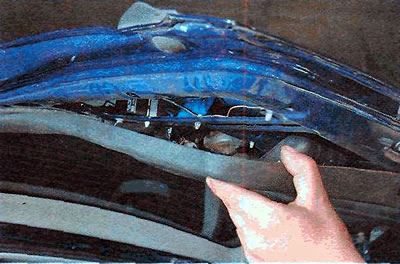

7. Pulling down, remove the upholstery, overcoming the resistance of the holders...

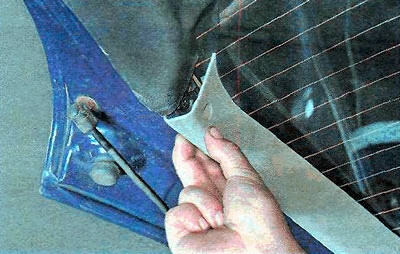

...and slightly bending the pillar trims.

Installation

We install the parts in reverse order.

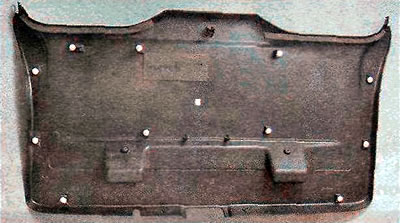

Note: Before installation, check the integrity of the holders.

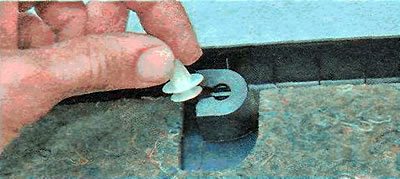

Replace the holders if necessary.
