1. Remove the door trim panel (Chapter 12). Pull out the plastic membrane cover as far as required.
2. Disconnect the links from the lock and, on 1988 models, disconnect the wires from the central locking motor.

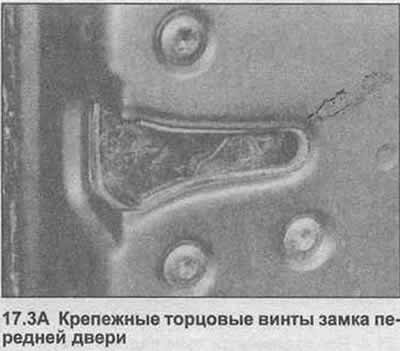

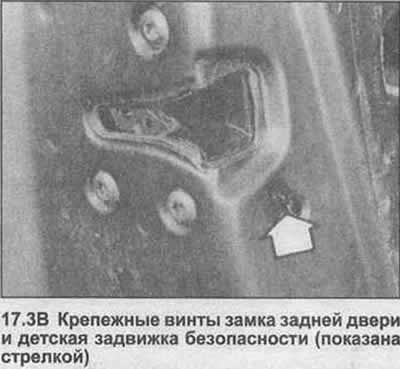

3. Using a socket wrench, remove the screws and remove the lock assembly from the door (photo).
4. Reassemble in reverse order, note that on models from 1988 equipped with central locking, the central locking motor must be adjusted before reinstalling, as described in Section 13. On all models, upon completion, check that the striker plate is centered in the lock and adjust if necessary.
