Fuel pump
Removal and installation

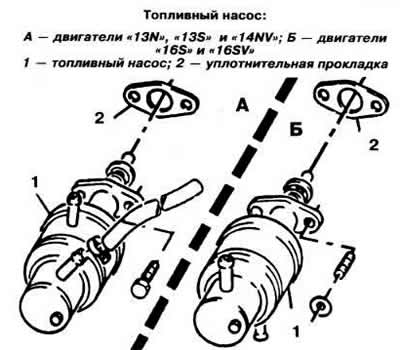

The fuel pump is driven by the camshaft eccentric. Removal and installation of the fuel pump is not particularly difficult.
When installing the pump, install a new gasket and crimp it in place, fasten the hoses for supplying and discharging fuel to the pump with clamps.
After installing the pump, check the fuel supply pressure, which at an engine speed of 1950 rpm should be in the range of 0.25-0.36 kg / cm2 for engines «13N», «13S», «14NV» and 0.25-0.33 kg/cm2 for engines «16S», «16SV».
