Removing
Drain coolant. To do this, remove the lower coolant hose. Collect coolant, as it can be used again.

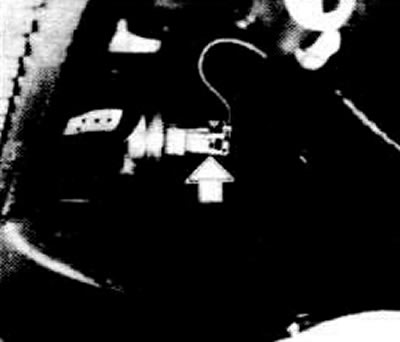

Remove the hose from the expansion tank. Remove the upper coolant hose.

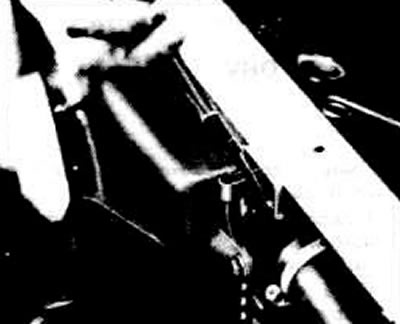

Disconnect the cable connections on the temperature sensor (arrow) and fan motor.
Remove the fixing brackets of the radiator with pliers from the top-left and right and pull up the radiator with air intake and fan motor
Installation
Install the radiator, install the retaining clips.
Attach coolant hoses and expansion tank hose.
Connect wire to temperature sensor.
Fill with coolant.
