Instrument cluster — replacing bulbs (Opel Zafira A)

Comment.

• The instrument panel illumination and the direction indicator lamps are illuminated by incandescent lamps, while the remaining indicator lamps are illuminated by LEDs that cannot be replaced.
• If the LEDs are faulty, the instrument panel must be replaced as a whole.

Sequence of execution

1. Remove the instrument panel (see "Instrument cluster - removal and installation").

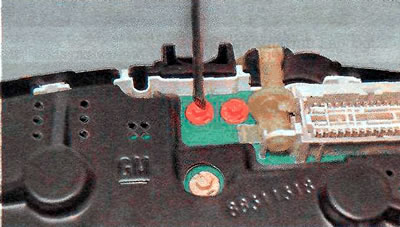

2. Using tweezers or a thin slotted screwdriver, turn the lamp socket counterclockwise and remove it from the instrument panel.



3. Install the parts in reverse order.
