Contents: Headlight bulbs ⬇ Front vehicle height sensor ⬇ Rear Height Sensor ⬇ Electronic control unit ⬇ Electric headlights ⬇
Warning! It is recommended to contact specialists to check the operation of the adjustment system and fine adjustment of the headlights.
Headlight bulbs
See. subsection 14.5.
Front vehicle height sensor
Removal
1. Remove the left wheel.

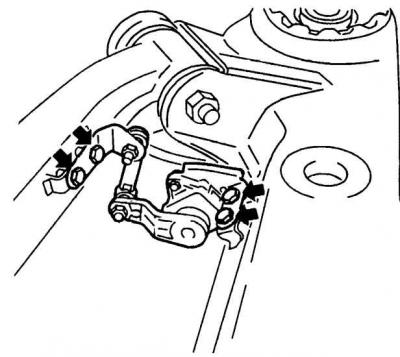

2. Disconnect the connection connector, unscrew the mounting bolts (indicated by arrows) and remove the sensor.
3. Loosen the mounting bolt and disconnect the sensor rod from the front suspension.
Installation
Installation is carried out in the reverse order of removal.
Rear Height Sensor
The sensor is installed on the left side of the rear suspension cross member.
Removal
1. Remove the left wheel.
(Text copied from an online resource: OPELBOOK.ru)

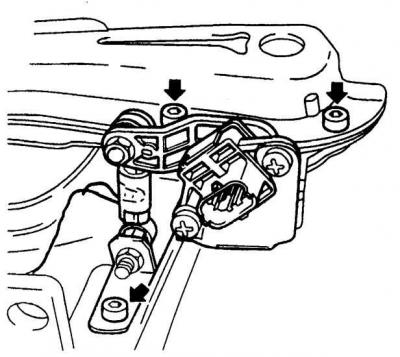

2. Disconnect the connection connector, unscrew the mounting bolts (indicated by arrows) and remove the sensor.
3. Loosen the mounting bolt and disconnect the sensor rod from the front suspension.
Installation
Installation is carried out in the reverse order of removal.
Electronic control unit
Removal
1. Remove the right front wheel well insert.
2. Remove the electronic control unit from the mounting bracket on the upper strut mount and disconnect the connection connector.
Installation
Installation is carried out in the reverse order of removal.
Electric headlights
Removal
1. Remove the headlight.
2. Turn the drive clockwise and remove it.
Installation
Installation is carried out in the reverse order of removal.
