Removing
1. Disconnect the negative cable from the battery.
2. Remove the air filter tube.

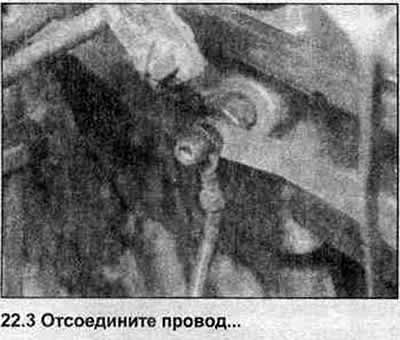

3. Disconnect the wire from the glow plug (see illustration).

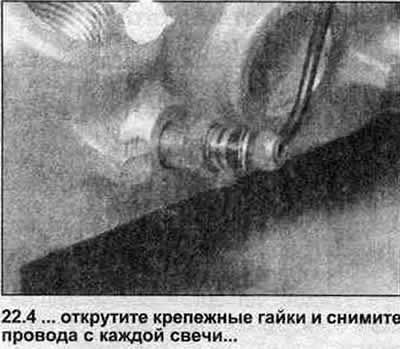

4. Unscrew the fixing nuts and remove the wires from each glow plug (see illustration). Note the position of the pucks.

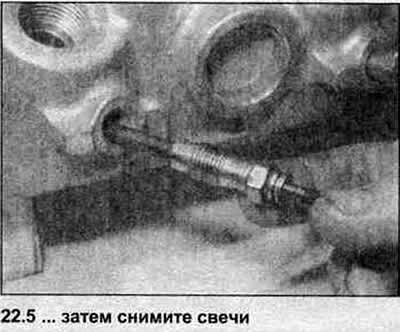

5. Unscrew and remove the glow plugs (see illustration).
Installation
6. Install in reverse order. Tighten the overrunning plugs with the tightening force specified in the Specifications.
