Test sequence for identifying faults in the LE-Jetronic injection system (Opel Kadett E)

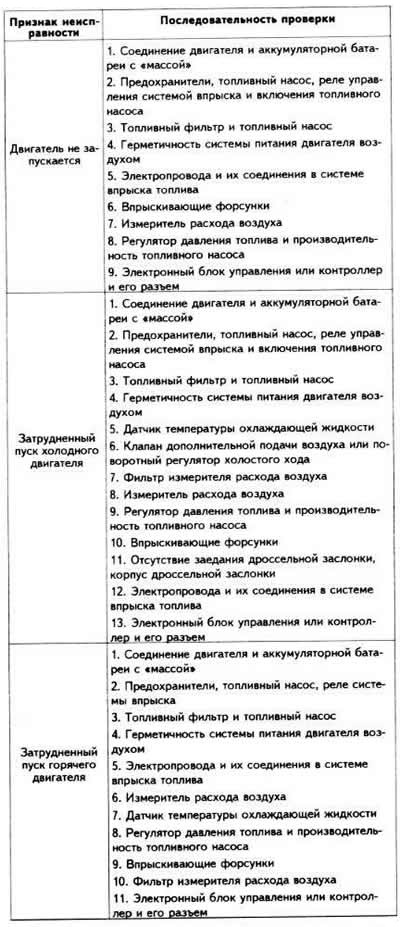

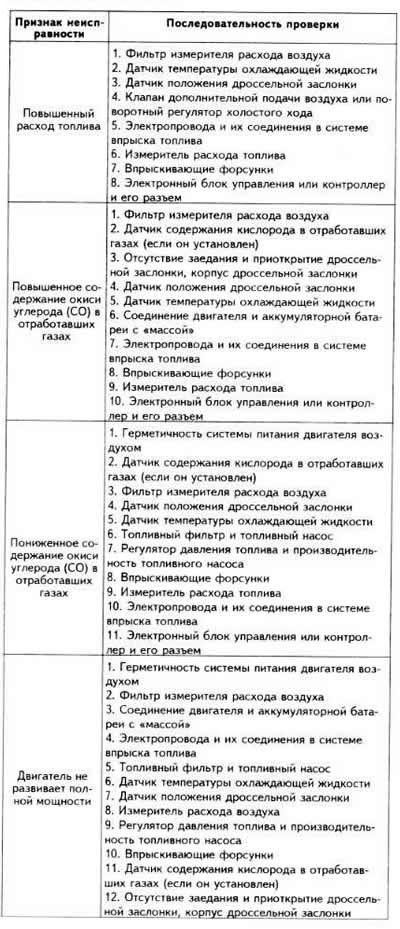

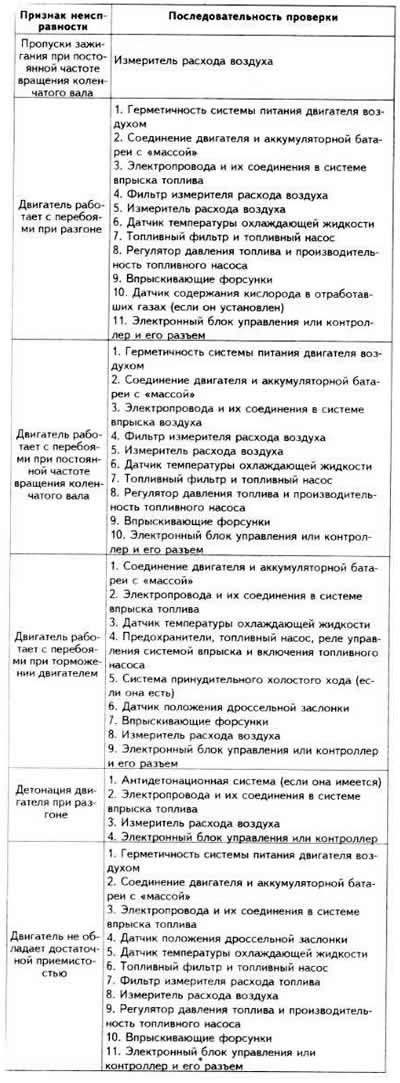

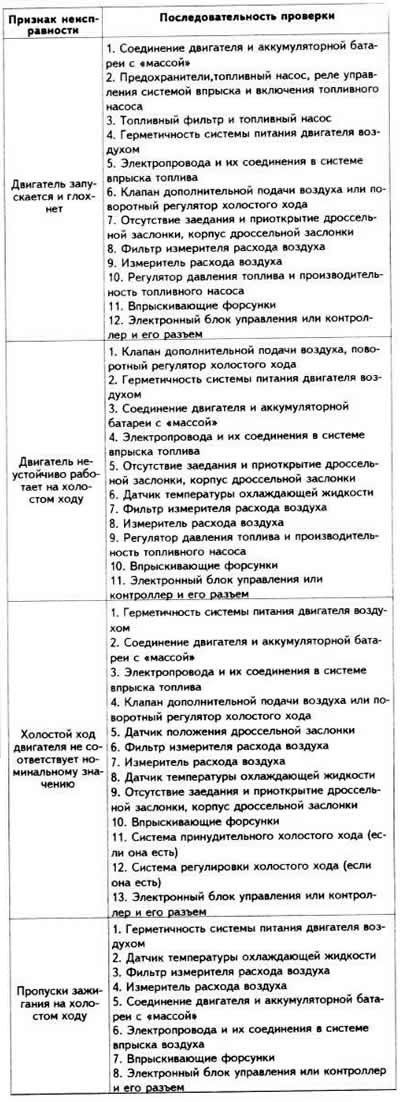

Sequence of checks when determining faults in the injection system "LE-Jetronic" and fuel injection systems that are part of digital engine management systems "Motronic ML4.1", "Motronic Ml.5", "Motronic M2.5"

Sequence of checks when determining faults in the injection system «LE-Jetronic» and fuel injection…

Sequence of checks when determining faults in the injection system «LE-Jetronic» and fuel injection…

Sequence of checks when determining faults in the injection system «LE-Jetronic» and fuel injection…

Sequence of checks when determining faults in the injection system «LE-Jetronic» and fuel injection…

Material published on the website: OPELBOOK.ru

This article is available at russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian

Checking the article: Shapovalov Yaroslav
