Technical characteristics of the front wheel brake mechanisms (Opel Kadett E)

Front wheel brakes of the brand "ATE" or "Delco Moraine" with floating caliper, single-piston, with solid or ventilated (on cars with engines "18E", "20NE", "C20NE", "20SEH", "20XE") disks.

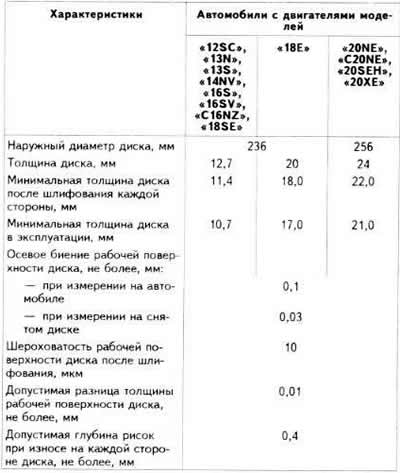

Characteristics of the front wheel brake discs

Brake pads

Brand and type:

• cars with engines "12SC", "13N", "13S", "14NV": Tex-tar T290 (asbestos free);
• cars with engines "16S", "16SV", "C16NZ", "18E", "18SE", "20NE", "C20NE", "20SEH", "20XE": Pagid PA 516 or Jund 100 (asbestos free).

The article was published on the website: OpelBook.ru

Dimensions of brake pad friction linings, mm; 98.4x44,0x11,0.

Total thickness of friction lining (together with the backing), mm: 15.5-15.9.

Minimum total friction lining thickness (when worn out), mm: -7.

Wheel cylinder

Piston diameter, mm:

• cars with engines "12SC", "13N", "13S", "14NV", "16S", "16SV", "From 16NZ", "18SE": 48.
• cars with engines "18E", "20NE", "C20NE", "20SEH", "20XE": 52.
