Front
1. Raise the front of the car with a jack and install axle stands.
2. Where equipped, disconnect the wiring from the front fog lights and the outside air temperature sensor.
3. Unscrew and remove the bolts securing the brackets to the bottom.
4. Wring out plastic fastenings and remove brackets of a suspension bracket.
5. Disconnect the side sections and remove the bumper forward.
6. Assembly is carried out in the reverse order.
Rear
7. Remove the rear light units as described in Section 13.
8. Disconnect the wires from the license plate light.
9. Remove the spare wheel (on Wagon models).
10. Remove rear protector and trim panel.

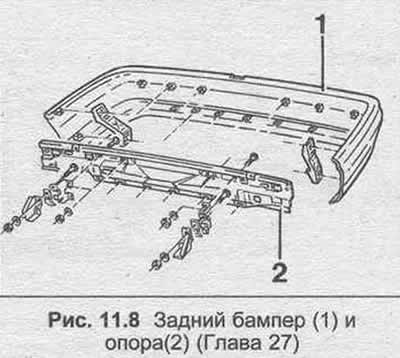

11. Unscrew bolts and remove a back bumper.
12. Assembly is carried out in the reverse order.
