Removing
Disconnect connecting cable from earth terminal -31- and from terminal of parking light bulb -58-.
Disconnect the multi-pin plug from the high and low beam bulb.

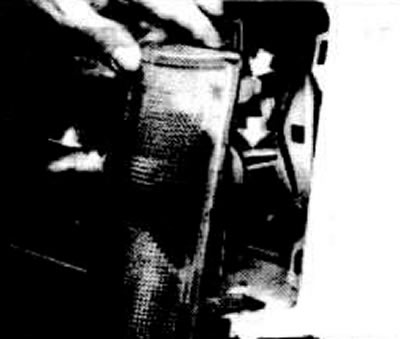

Remove the protective cap from the reflector.
Remove the holder of the turn signal lamp by turning it accordingly.
Squeeze the direction indicator lamp holders out of the engine compartment, remove the direction indicator lamp.

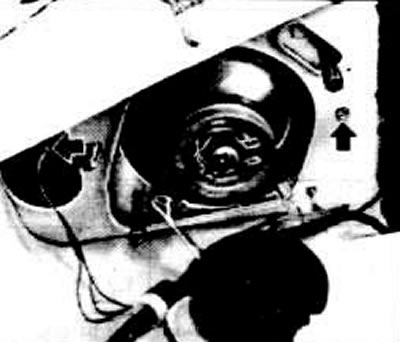

For round headlights, remove protective rings towards the front.

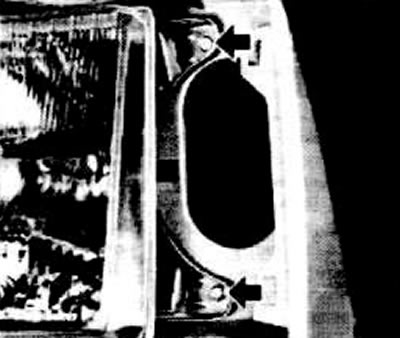

Unscrew the fixing screws of the headlights from the engine compartment.
Unscrew the fixing screws for the headlights behind the direction indicator lamp. Remove the headlight from the body.
Installation
Install headlight and secure with three screws.
Install the direction indicator lamp, secure the direction indicator lamp holder by turning it accordingly.
Screw protective rings on the front of the handicap.
Install the protective cap for the reflector. connect the multi-pin plug to the headlight bulb.
Connect connecting cable to earth terminal -31- and to parking light bulb terminal -58-.
Adjust handicap.
