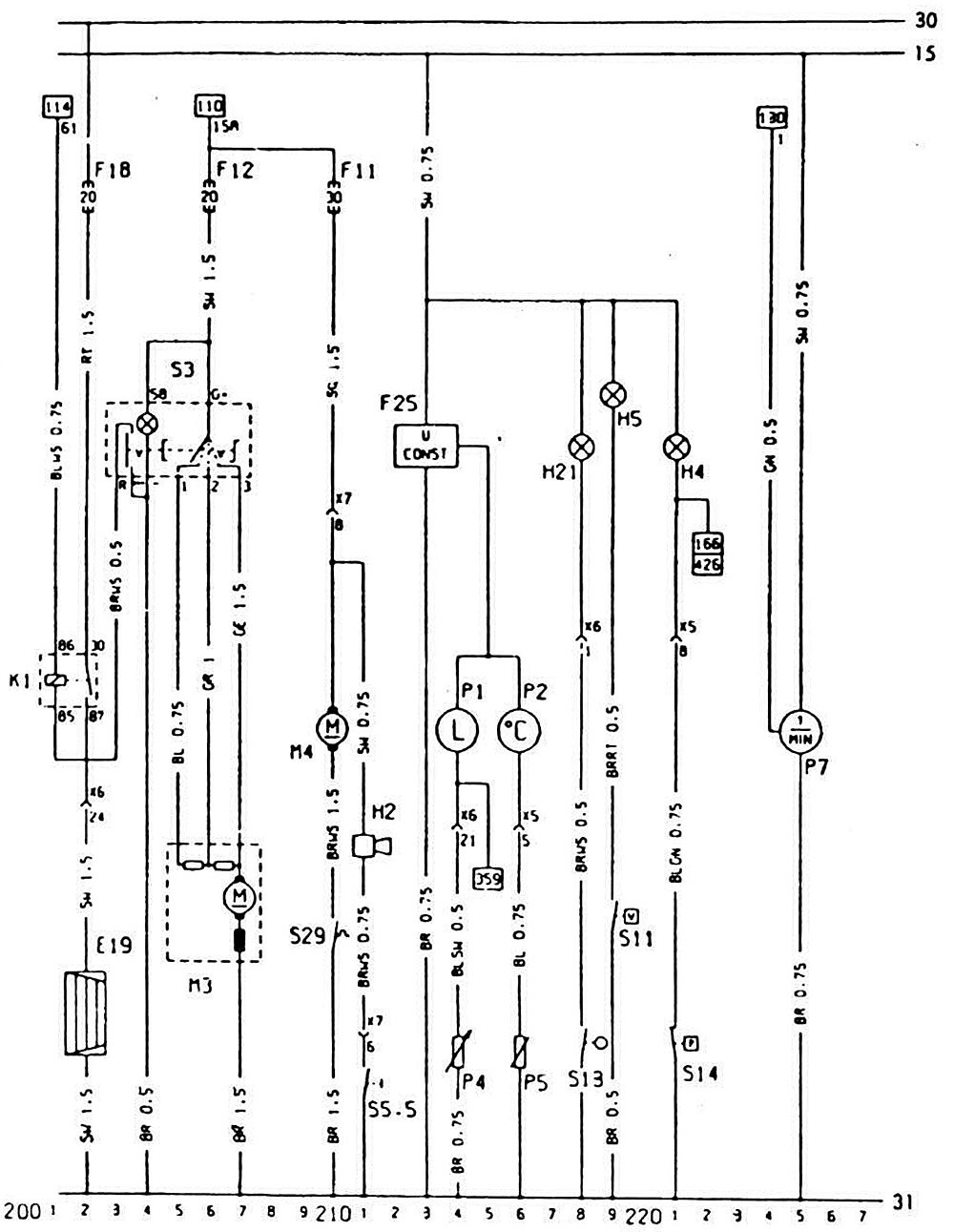

Open large image in new tab →
| Designation on the diagram | Name | Position on the diagram |
| E19 | Rear window heating element | 202 |
| F11 | Fuses in the mounting block | 210 |
| F12 | Fuses in the mounting block | 206 |
| F18 | Fuses in the mounting block | 202 |
| F25 | Voltage stabilizer | 213 |
| H2 | Sound signal | 211 |
| H4 | Oil pressure warning light | 221 |
| H5 | Brake fluid level indicator light | 219 |
| H21 | Parking brake indicator light | 218 |
| K1 | Rear window heating element activation relay | 201 |
| M3 | Heater Fan Motor | 207 |
| M4 | Engine cooling system fan electric motor | 210 |
| R1 | Fuel level indicator | 214 |
| R2 | Coolant temperature gauge | 216 |
| R4 | Fuel level sensor | 214 |
| R5 | Coolant temperature sensor | 216 |
| R7 | Tachometer | 225 |
| S3 | Heater Fan and Rear Window Defogger Switch | 205 |
| S5.5 | Horn switch | 211 |
| S11 | Brake fluid level indicator light switch | 219 |
| S13 | Parking brake system indicator lamp switch | 218 |
| S14 | Oil pressure warning light switch | 221 |
| S29 | Coolant Temperature Warning Light Switch | |
| X5 | Engine Wire Harness Connector | |
| X6 | Connector of the wiring harness to the rear of the car | |
| X7 | Connector of the wiring harness to the front of the car |
(Material provided by this website: OpelBook.ru)
