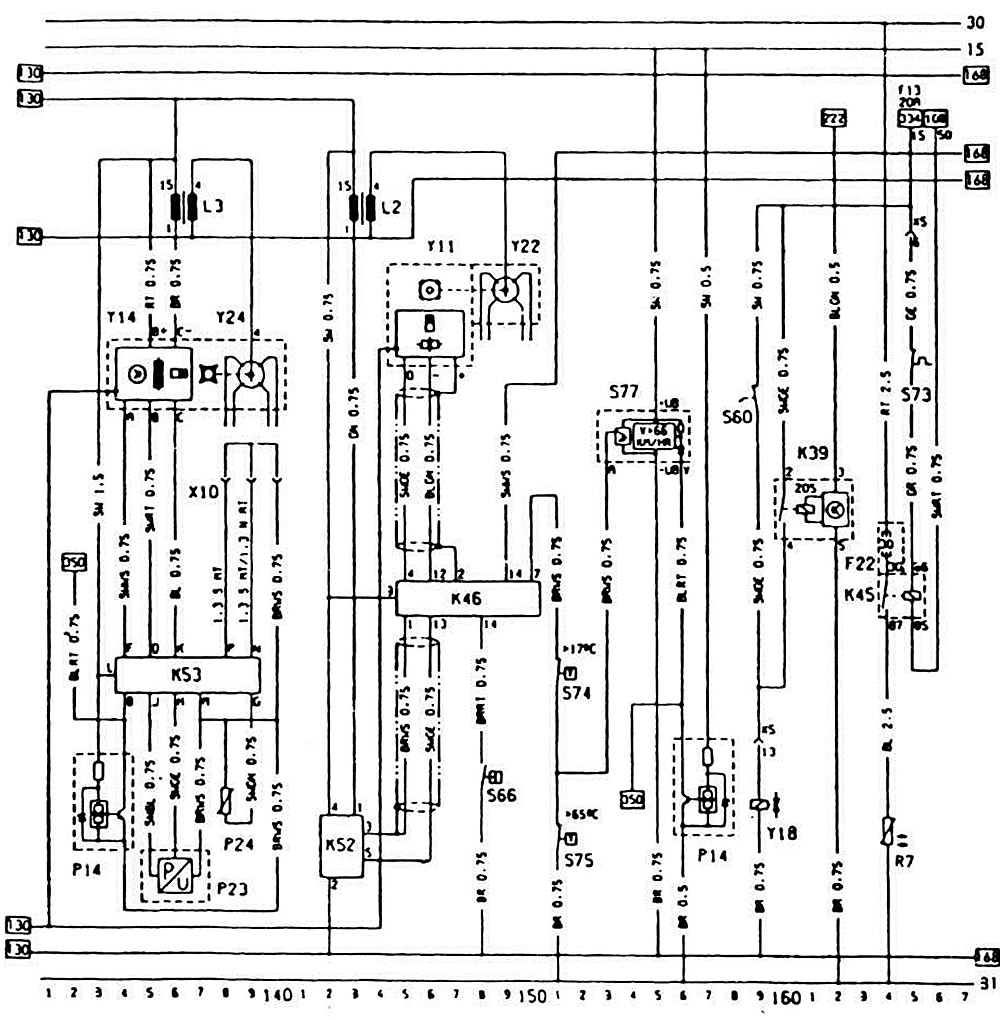

| Designation on the diagram | Name | Position on the diagram |
| F22 | Fuse for heating the working mixture circuit | 164 |
| K39 | Throttle Damper Time Relay | 161 |
| K45 | Relay for switching on the heating of the working mixture | 163 |
| K46 | Electronic control unit of the ignition system EZL | 147L |
| R52 | EZL Ignition Switch and Coil | 142 |
| R53 | Electronic control unit of the ignition system EZF | 136 |
| L2 | Ignition coil of contactless ignition system TSZ with Hall sensor | 143 |
| L3 | Ignition coil of contactless ignition system TSZ with induction generator of control pulses | 136 |
| R14 | Vehicle speed sensor | 133, 157 |
| R23 | Ignition system vacuum sensor EZF | 138 |
| R24 | Ignition Oil Temperature Sensor EZF | 136 |
| R7 | Heating element of the working mixture | 164 |
| S60 | Throttle Damper Switch on Clutch Pedal | 159 |
| S66 | Vacuum switch of the ignition system EZL | 148 |
| S73 | Thermal switch for heating the working mixture | 165 |
| S74 | Coolant Temperature Control System Thermal Switch | 151 |
| S75 | Thermal switch for oil temperature control system | 151 |
| S77 | Speed sensor switch | 154 |
| Y11 | Hall sensor | 146 |
| U,4 | Induction generator of control pulses of the ignition system EZF | 135 |
| Y18 | Throttle Damper Solenoid Valve | 159 |
| Y22 | Ignition distributor sensor for EZL ignition system | 147 |
| Y24 | Ignition distributor sensor for EZF ignition system | 139 |
| X5 | Engine Wiring Harness Connector | |
| X10 | Ignition Regulator Sensor Connector | 138 |
